Part Number: DM164130-5

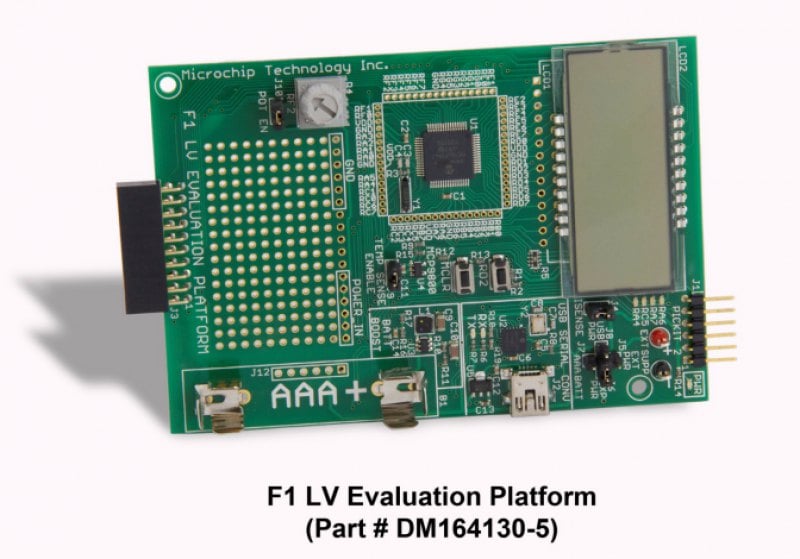

F1 LV EVALUATION PLATFORM
- 64-pin development board with generous prototyping area
- Populated with a PIC16LF1947 featuring nanoWatt XLP technology
- MCP9800 temperature sensor
- MCP1624 low voltage boost
- MCP2200 USB to UART converter
- 3 Volt, 40 segment multimeter LCD glass
- USB to serial interace with mini-B USB connector
- Potentiometer
- Mechanical buttons
- 32kHz low power crystal
- LEDs
- Current monitoring connector to measure low power XLP capabilities
- In Circuit Serial Programming Interface for PICkit3
- PICkit serial interface
- Expansion header for the F1 BLDC/BDC/Unipolar/Bipolar motor add-on
- Included Demos:
- Low Power Demonstration
- LCD Demonstration
- BLDC/BDC/Unipolar/Bipolar motor control demonstrations (requires F1 motor add-on)
Overview
This product is no longer available for sale.
The F1 Low Voltage Evaluation Platform is a development tool for Enhanced Mid-range PIC microcontrollers (PIC12F1xxx/PIC16F1xxx). Populated with a PIC16LF1947, featuring XLP technology & MCP1624 for low voltage single cell battery support, this provides a platform for general purpose & low voltage development and gives you the ability to develop code for any PIC12F1xxx/PIC16F1xxx microcontroller. Quick & easy development is ensured with the integrated functionality including: prototyping area, LCD control, system current monitoring, temperature sensing, Real-Time-Clock, LED drive, button control, USB interface, various power sources, and BLDC/BDC/Unipolar/Bipolar motor control.
Newer version development tools are available now. Please consider Curiosity Development Board (DM164137) or Explorer 8 Development Board (DM160228) for new designs
The F1 Low Voltage Evaluation Platform is a development tool for Enhanced Mid-range PIC microcontrollers (PIC12F1xxx/PIC16F1xxx). Populated with a PIC16LF1947, featuring XLP technology & MCP1624 for low voltage single cell battery support, this provides a platform for general purpose & low voltage development and gives you the ability to develop code for any PIC12F1xxx/PIC16F1xxx microcontroller. Quick & easy development is ensured with the integrated functionality including: prototyping area, LCD control, system current monitoring, temperature sensing, Real-Time-Clock, LED drive, button control, USB interface, various power sources, and BLDC/BDC/Unipolar/Bipolar motor control.
