Part Number: ATA8520-EK3-F

ATA8520-EK3-F

  • This kit demonstrates a Flash application with the
    • ATA8520-EK1-F evaluation kit:
      • with the Microchip SIGFOX™ ATA8520E V2.3 transceiver device and a Microchip ATmega328P AVR® microcontroller with AT30TS75A temperature sensor as a battery-powered kit for standalone operation
      • ATA8520-EK3-F extension board:
        • Includes Atmel SIGFOX ATA8520E V2.3 transceiver device with an AT30TS75A temperature monitoring device. An additional MCU application development kit, i.e., XplainedPro SAMD20 or SAMD21 and 3V power-supply is required.
View Purchasing Options
Contact Us

Overview

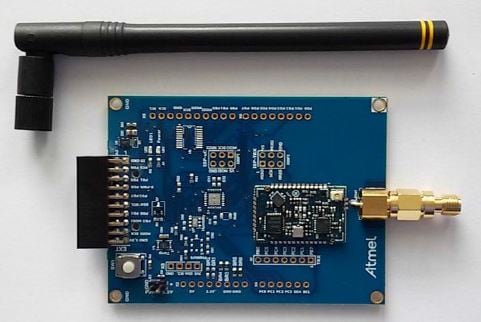

The ATA8520-EK3-F is a SIGFOX extension board for the Xplained Pro development kit. It can be used for evaluation of the ATA8520E SIGFOX compliant transceiver and operates in the US 902MHz ISM band (FCC). The kit is SIGFOX Ready, FCC certified and supports class 0 output power. The SIGFOX extension kit comes with a fully pre-programmed ATA8520E device including SIGFOX ID and PAC code for registration at the SIGFOX backend. The kit also provide an antenna to be connected to the SMA connector and the connector to plug the extension kit to the Xplained Pro board. The Xplained Pro development board is not included in the SIGFOX extension kit and has to be purchased individually.
Package Contents
  • A single PCB ATAB0102A with
    • A Microchip ATA8520E SIGFOX™ transceiver device
    • A Microchip ATmega328P AVR® microcontroller at 8MHz
    • An AT30TS75A temperature sensor with TWI
  • A 902MHz monopole antenna for connection to the RP-SMA connector
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
ATA8520E - Complete Datasheet Download 1b40fd74-d31e-4f80-8db1-817c5d122697

Application Notes

Title
Date
Document Category
ATAN0162: Quick Start Guide for ATA8520-EK4/EK6-E evaluation kits, EU version, 868MHz - Development Tools/Kits 10 Dec 2016 Link Application Notes
ATAN0161: User Guide for ATA8520-EK4/EK6-E evaluation kits, EU version, 868MHz - Development Tools/Kits 10 Dec 2016 Link Application Notes
ATAN0160: ATA8520E Production and EOL Testing - Application Example and Algorithms 10 Dec 2016 Link Application Notes
ATAN0158: ATA8520E Reference Design - Design Considerations 10 Dec 2016 Link Application Notes
ATAN0157: Quick Start Guide for ATA8520-EK1/EK3-F evaluation kits, US version 902MHz - Development Tools/Kits 10 Dec 2016 Link Application Notes
ATAN0156: User Guide for ATA8520-EK1/EK3-F evaluation kits, US version, 902MHz - Development Tools/Kits 10 Dec 2016 Link Application Notes
ATAN0129: ATA8520 FAQ - Getting Started Guide 10 Dec 2016 Link Application Notes
ATAN0115: Smart RF Device Family - Getting Started Guide 10 Dec 2016 Link Application Notes
