ata8510_ek1_2024
ata8510_ek1_2024

Part Number: ATA8510-EK1

ATA8510-EK1

  • Demonstrates an application with the
    • RF transceiver Atmel ATA5831 in a base station with an Xplained PRO SAMC21 kit
    • ATA8510 RF Transceiver remote sensor with an AT30TS75A temperature sensor and an optional CMM-1923 real-time clock
    • Two-way RF communication
View Purchasing Options
Contact Us

Overview

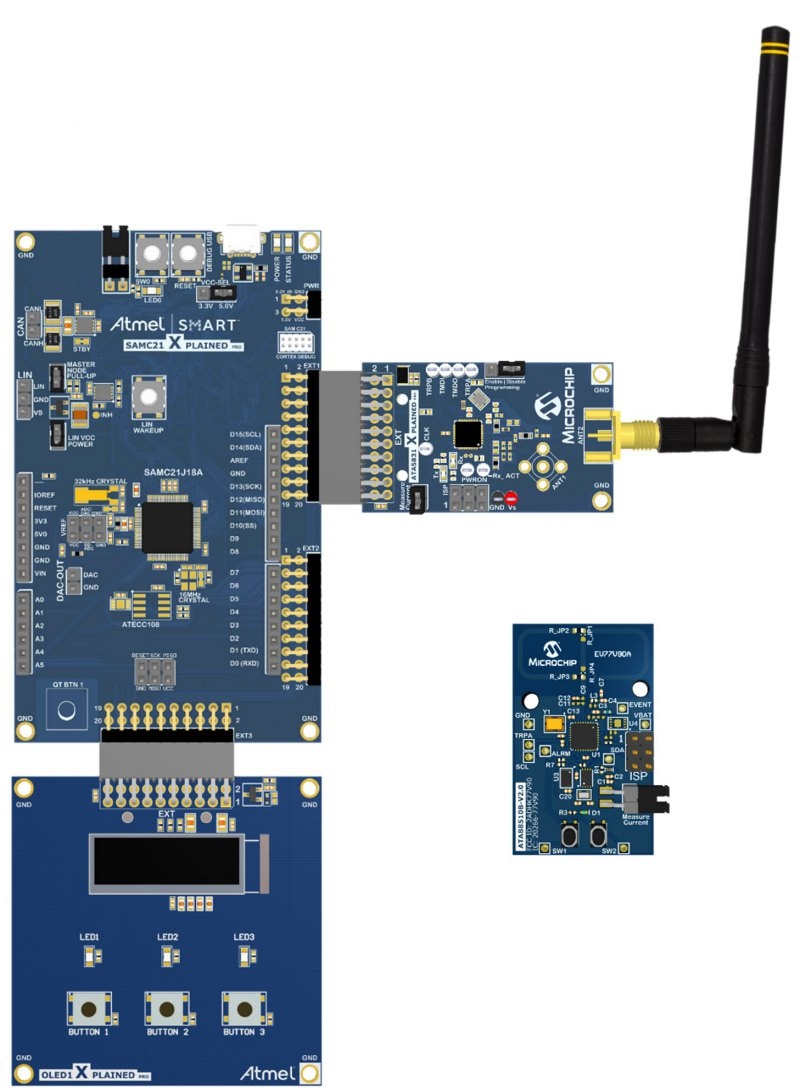

The ATA8510-EK1 is for evaluation of the ATA8510 / ATA8515 RF transceiver devices and demonstrates a 2-way communication at 433.92 MHz. The kit includes a sensor board with ATA8510 (RF transceiver running a Flash application), Xplained PRO ATA5831 extension board, Xplained PRO SAMC21 evaluation board and Xplained PRO OLED1 extension board. See ATA8510-EK1 Tool Package v4.0 for latest documentation.

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
ATA8510/ATA8515 - Complete Datasheet Download 456244fe-26d0-4962-850f-df531fef800f
ATA8510-EK1 Evaluation Kit User Guide PDF | HTML bcde23bd-f77b-4131-8001-d1a119724fa7

Software

Title
Date
ATA8510 EK1 Tool Pack V4.01 Download 31 Oct 2024
ATA8510-EK1 Tool Package v3.0 Download 06 Nov 2020
ATA8510-EK1 Tool Package v2.0 Download 08 Jun 2017
ATA8510-EK1 Tool Package Download 07 Jun 2017
Template ATA8510 Flash IAR4k Download 08 Jun 2017
EEPROM Config Tool Download 15 Apr 2021
