Part Number: AT91SAM9263-EK

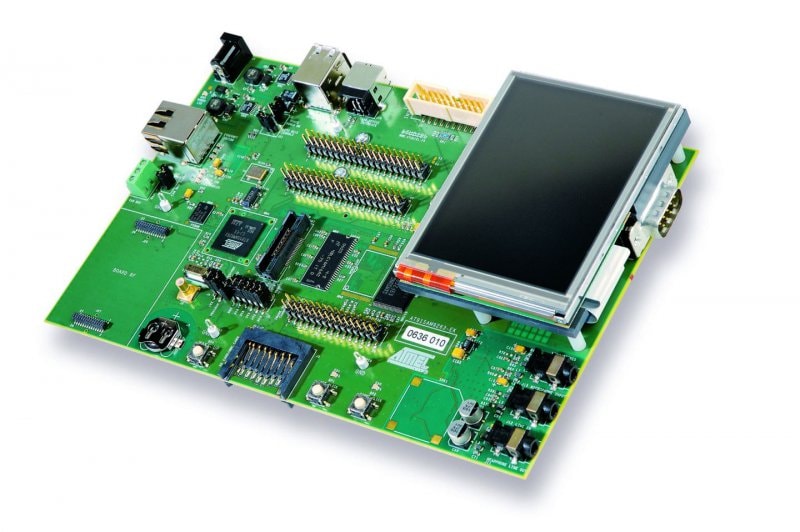

SAM9263-EK


  • 64 Mbytes of SDRAM memory
  • 4 Mbytes of PSRAM memory on EBI1
  • 256 Mbytes of NAND Flash memory
  • One NOR Flash memory (footprint only)
  • One 1.8" Hard disk connectors
  • One TWI serial memory
  • One USB device port interface
  • Two USB Host port interfaces
  • One RS232 serial communication port
  • One DBGU serial communication port
  • One serial CAN 2.0B communication port
  • One JTAG/ICE debug interface
  • One Ethernet 100-base TX with three status LEDs
  • One AC97 Audio DAC
  • One 3.5" 1/4 VGA TFT LCD Module with TouchScreen and backlight
  • One ISI connector (camera interface)
  • One DataFlash??/SD/SDIO/MMC card slot
  • One SD/SDIO/MMC card slot
Part Number: Quantity: Price per Unit (in USD): Total Amt:

Overview


This kit lets designers quickly evaluate and develop code for applications running on an SAM9263 microcontroller.

Documentation


Title
Document Id
SAM9263-EK Design & Manufacturing Files - Bundle containing all the schematics, PCB and test files for all the kit versions. Download 2bb54cf3-1f7e-4024-af3f-b909e7d9b0ca
AT91SAM9263-EK Evaluation Board Rev. B User Guide Download 35d273e2-da6c-4107-af16-41387da177c6
SAM9263-EK Design & Manufacturing Files Information - Kit versioning history and information, plus bundle contents description. Download e61a5ca2-5427-4d2d-9e9e-f995cbf4945b
AT91SAM9263-EK Evaluation Board Rev. A User Guide Download fcfbb180-ddf0-4be3-a605-89cac3b0f10b
AT91SAM9263 CD-ROM Image Download f22c74e8-b18c-42b8-8e04-fa247bf1bc7c

Application Notes


Title
Date
Document Category
Getting Started with the AT91SAM9263 Microcontroller 10 Dec 2016 Link Application Notes

Software


Title
Date
AT91-ISP.exe (v1.12 prev release) Download 02 Jan 2017
AT91-ISP.exe (v1.11 prev release) Download 02 Jan 2017
