Part Number: APGRD002

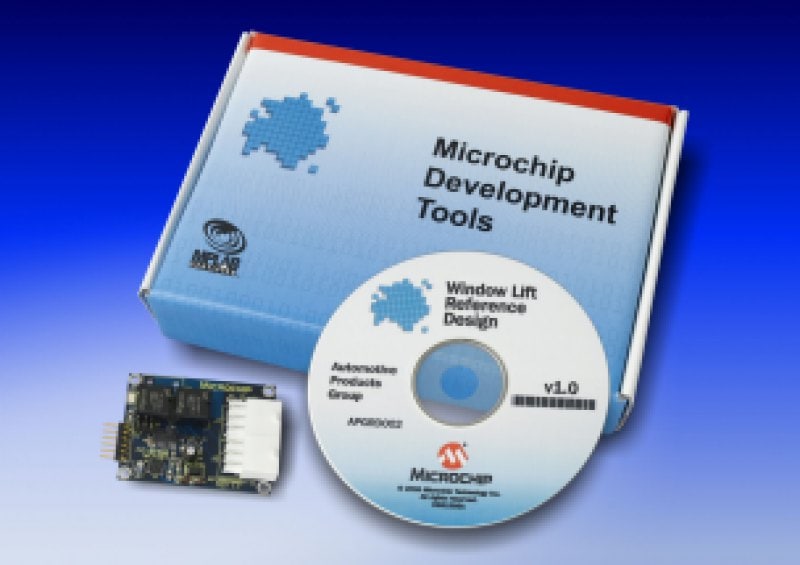

WINDOW LIFT W/ ANTI PINCH REFERENCE DESIGN

This reference design uses a low end 8-bit microcontroller to implement:

  • Full H-Bridge controller to provide bidirectional motor control
  • 10-bit ADC to interpret the active feedback for implementing the Anti-Pinch functionality.
  • A LIN Protocol module allowing for intersystem communication within the door module as well as the main body controller.

Overview

The Window Lift with Anti-Pinch design provides bidirectional control for the window lift motor with minimal passive components, with the ability to implement anti-pinch in the software.

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
Window Lift Software with LIN 2.0v drivers in C Download 80033675-f3e8-4bf5-892e-6a578d6eb5cc
Window Lift Hardware and Software Files Download a2a738fb-38c9-49cc-851b-66063933a498
Anti-Pinch Window Lift Control Module User's Guide Download 961d5653-bfee-4054-a820-f033528e1b29
