Part Number: APGRD001
PASSIVE KEYLESS ENTRY REFERENCE DESIGN

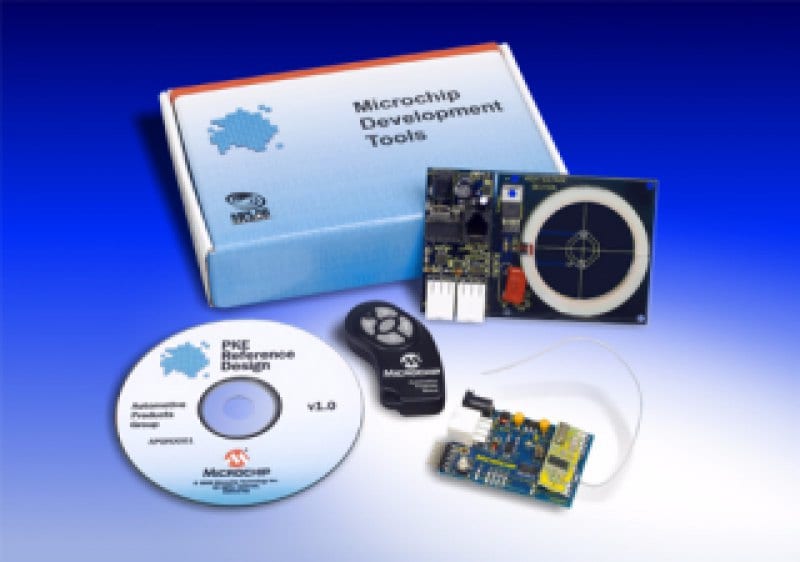

This reference design contains three boards:
- Base Station – Initiates communication by sending out a Low Frequency signal between fixed time intervals to search for the paired Key Fob.
- Key Fob – When the Key Fob detects the signal it sends back an Ultra High Frequency acknowledgment signal.
- Receiver/Decoder – Receives the signal sent out by the Key Fob, and upon positive authentication, signals for the door to be unlocked.
Package Contents
The Passive Keyless Entry (PKE) system provides the user with the convenience of communicating with a RKE/immobilizer/security system without pressing any buttons.
Additional Resources
Additional Information
Additional Resources:
- App Note AN1024: PKE System Design Using the PIC16F639
- Reference Design APGAC011: Accessory Key Fob for APGRD001 PKE Reference Design
