Part Number: ADM00879
ADM00879 - EMC2305 & EMC1438 FAN CTRL AND TEMP DEMO
- 5 Fan channels with RPM control capable of driving 3 or 4 wire fans
- 2 on board temperature sensors
- 6 remote temperature sensor connections
Overview

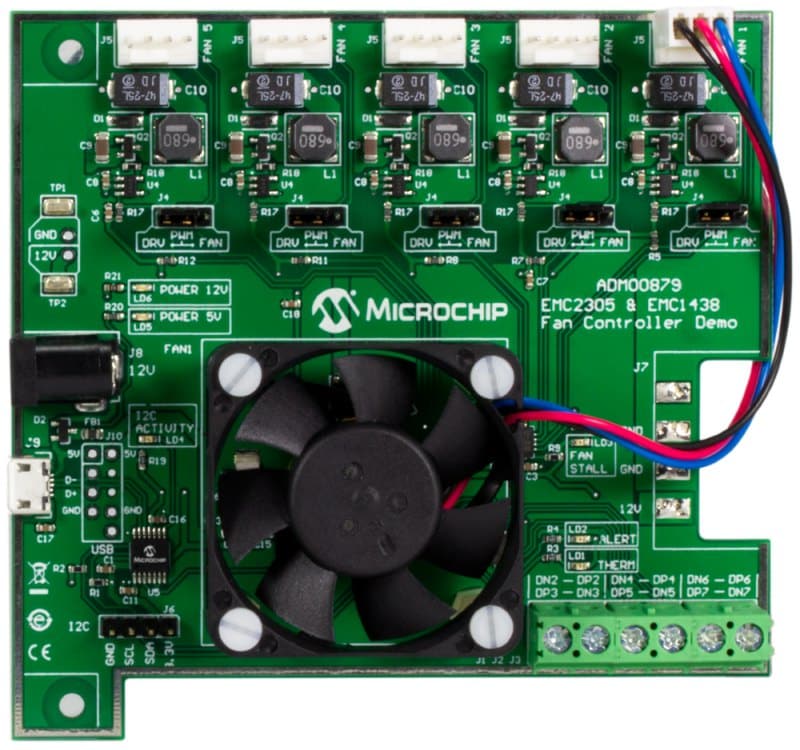

The ADM00879 Fan Controller Demo Board provides an example of a 12V fan control application using the EMC2305 fan controller and EMC1438 temperature sensor. There are 5 fan channels, 2 on board temperature sensors and 6 remote temperature sensor inputs available.
The demo GUI has options to manually set up all the parameters for the thermal sensor and fan controller, as well as providing a fully automatic temperature control interface where any fan channel can be linked to any temperature channel.
Package Contents
- ADM00879 - EMC2305 & EMC1438 Fan Controller and Temperature Demo Board
- USB A to Micro USB cable
- 2 x NPN Transistors (TO-92) to use as remote temperature sensors
Documentation
|
Title
|
|||
|---|---|---|---|
| EMC2305 -EMC1438 Fan Controller Demo (ADM00879) - Schematic | Download | ||
| EMC2305 -EMC1438 Fan Controller Demo (ADM00879) - Gerber files | Download | ||
| ADM00879 Demonstration Board User’s Guide | Download | ||
| EMC2305 -EMC1438 Fan Controller Demo (ADM00879) - BOM | Download | ||
| ADM00879 R3 Design Files | Download |
Software
|
Title
|
Date
|
||
|---|---|---|---|
| Thermal Management Utility | Download | 27 Sep 2024 |
