676-adm00443
676-adm00443

Part Number: ADM00443

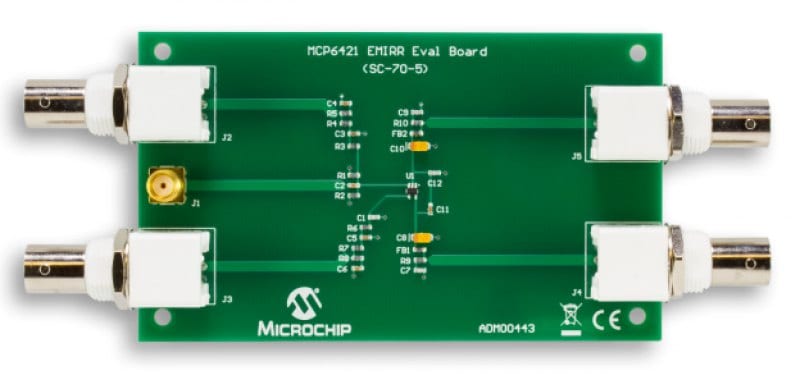

MCP6421 EMIRR EVALUATION BOARD

  • All of the component labels on the board are consistent with those on the schematic
  • Supports the MCP6421 single op amp SC70-5 package
  • Test points for connection to lab equipment
  • Single supply or dual-supply configuration
View Purchasing Options
Contact Us

Overview

The MCP6421 EMIRR Evaluation Board is intended to support the electromagnetic interference rejection ratio (EMIRR) measurement and to show the electromagnetic interference (EMI) rejection capability of the MCP6421 operational amplifier.

Devices Supported: MCP6421
Package Contents
  • 1x MCP6421 EMIRR Evaluation Board (ADM00443)
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
SPICE Model for MCP6421/2/4 Devices Download 9ea17d5a-3b69-4257-99f2-f1b6cd2ac472
MCP6421 EMIRR Evaluation Board (ADM00443) BOM Download f2bc8a53-37c1-4ab4-ba39-9f3ee5670de9
MCP6421 EMIRR Evaluation Board (ADM00443) Gerbers Download 906aecb2-d774-467f-9da3-093198ad5a9d
MCP6421 EMIRR Evaluation Board (ADM00443) Schematics Download 2f288303-55bc-4baf-a251-e1d048ca8087
MCP6421 EMlRR Evaluation Board User's Guide Download c99922be-9450-48ce-b8d8-231e72f0d4a2
MCP6421/2/4 Data Sheet Download 1d5630c4-66bc-4dea-bf3a-fb4995c1d410
