Part Number: AC323027
PIC32MX CTMU EVALUATION BOARD
.
Overview
Package Contents

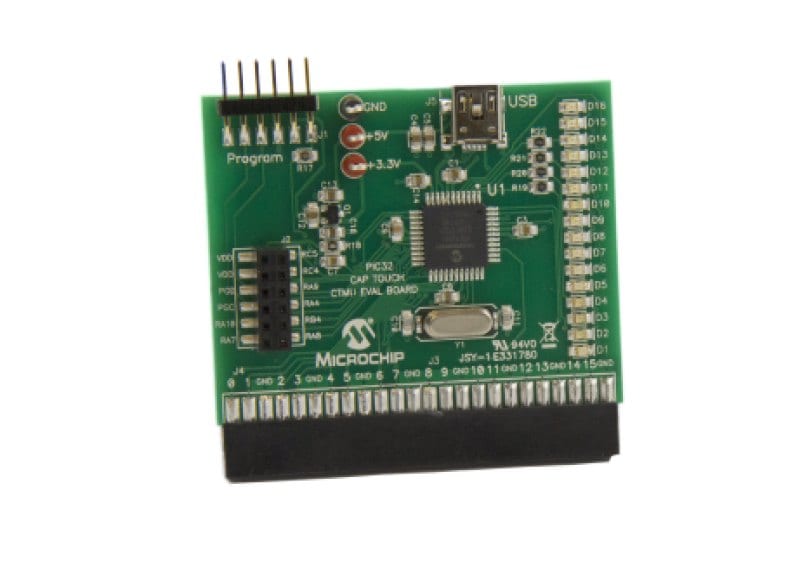

The PIC32 CTMU Evaluation Board (AC323027) is designed to facilitate the development of capacitive touch-based applications using the low cost high performance PIC32 MX1/MX2 -series microcontrollers. This evaluation board includes an on-board PICkitTM serial interface, an ICSPTM header, a USB connector (for power only), and 16 LED’s. The board also includes a 24-pin header that can be used to interface the 2-channel and 4-channel slider plug-in boards, the 12-matrix key plug-in board and the 8-direct key plug-in board. These plug-in boards are included in the mTouchTM Capacitive Touch Evaluation Kit (sold separately, DM183026-2). Documentation
|
Title
|
|||
|---|---|---|---|
| AN1375 - See What You Can Do with the CTMU | Download | ||
| AN1334 - Techniques for Robust Touch Sensing Design | Download | ||
| AN1317 - mTouch Conducted Noise Immunity Techniques for the CTMU | Download | ||
| Enhanced mTouch Capacitive Touch Evaluation Kit Users Guide | Download | ||
| PIC32MX CTMU Evaluation Board Information Sheet | Download |
Application Notes
|
Title
|
Date
|
Document Category
|
|
|---|---|---|---|
| mTouch Metal Over Cap Technology | 24 Jun 2015 | Link | Application Notes |
| AN1375 - See What You Can Do with the CTMU | 11 May 2011 | Legacy Collaterals |
Software
|
Title
|
Date
|
||
|---|---|---|---|
| PIC32MX mTouch Demos | Download | 09 Apr 2012 |
