Part Number: AC320006

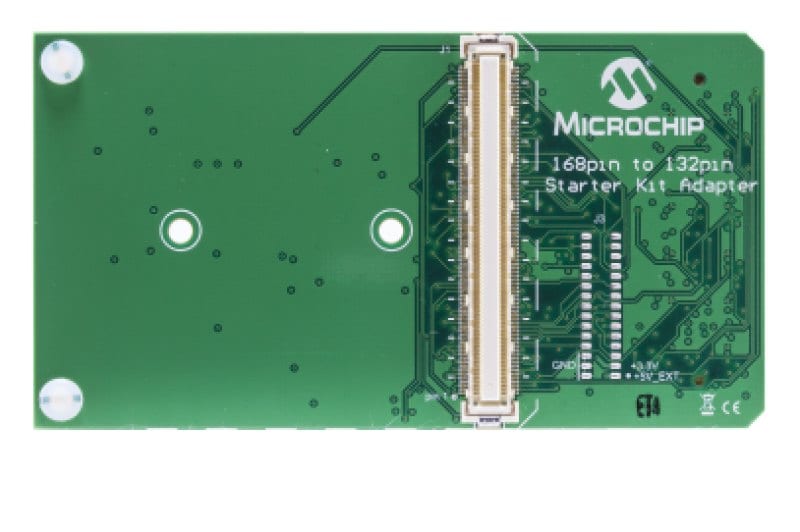

PIC32MZ STARTER KIT ADAPTER BOARD
The PIC32MZ EC Starter Kit Adapter enables the use of PIC32 starter kits that have a 168-pin interface with the following PIC32 hardware:
- Multimedia Expansion Board (MEB) - P/N DM320005
- PIC32 I/O Expansion Board - P/N DM320002
- Low-Cost Controllerless (LCC) Graphics PICtail Plus Daughter Board - P/N AC164144.
- Graphics LCD Controller PICtail Plus SSD1926 Board - P/N AC164127-5
- Grapchics Controller PICtail Plus Epson S1D13517 Board - P/N AC164127-7
Package contains: PIC32MZ EC Starter kit adapter board
Overview
The Microchip PIC32MZ Starter Kit Adapter Board, features a 168-pin to 132-pin connector, enables the use of PIC32MZ starter kits that have a 168-pin interface with the following PIC32 hardware:
-Multimedia Expansion Board (MEB) – Part # DM320005
-PIC32 I/O Expansion Board – Part # DM320002
-Low-Cost Controller-less (LCC) Graphics PICtail Plus Daughter Board – Part # AC164144
-Graphics LCD Controller PICtail Plus SSD1926 Board – Part # AC164127-5
-Graphics PICtail Plus Epson S1D13517 Board – Part # AC164127-7
