Part Number: AC164156

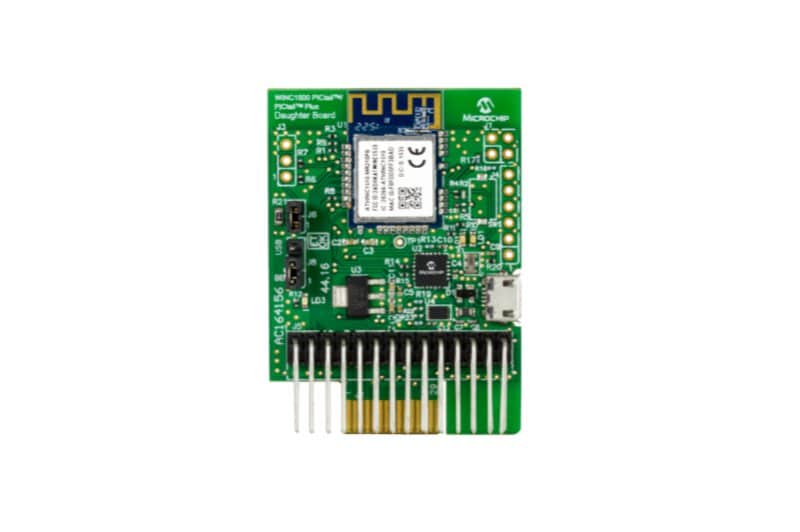

WINC1500 PICTAIL™/PICTAIL PLUS DAUGHTER BOARD

  • Option to switch power source between USB and PICtail/PICtail Plus interface base board
  • The UART debug interface of WINC1500 daughter board can be plugged directly into PC
  • User LEDs for indications
  • Power measurement header
  • I2C debug header for RF validation
  • GPIO debug header
Buy Now
Contact Us
Part Number: Quantity: Price per Unit (in USD): Total Amt:
Continue Shopping Go to Cart

Overview

The WINC1500 PICtail/PICtail Plus Daughter Board is a demonstration and development board for the WINC1510-MR210PB certified Wi-Fi module. This daughter board has PICtail and PICtail Plus connectors to interface with a PIC microcontroller on the development boards that supports either PICtail or PICtail Plus interface.The daughter board can be plugged into multiple Microchip Technology demonstration and development boards. For example, the daughter board is appropriate for 8-bit microcontroller development using the PIC18 Explorer board or for 16-bit microcontroller development using Explorer 16 Development Board.
Package Contents
  • One WINC1500 PICtail/PICtail Plus Daughter Board, which contains the ATWINC1510-MR210PB module
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
PIC24 MCU Support for ATWINC15x0 Wi-FI Network Controller Download f5636396-d50e-47a5-819c-e45ec1ca048d
WINC1500 PICtail / PICtail Plus Daughter Board User's Guide Download ef6c0e02-d6b2-4190-b804-15a8ed05c1fc

Software

Title
Date
WINC1500 PICtail / PICtail Plus Daughter Board Design Package Download 05 May 2017
