Part Number: AC164141

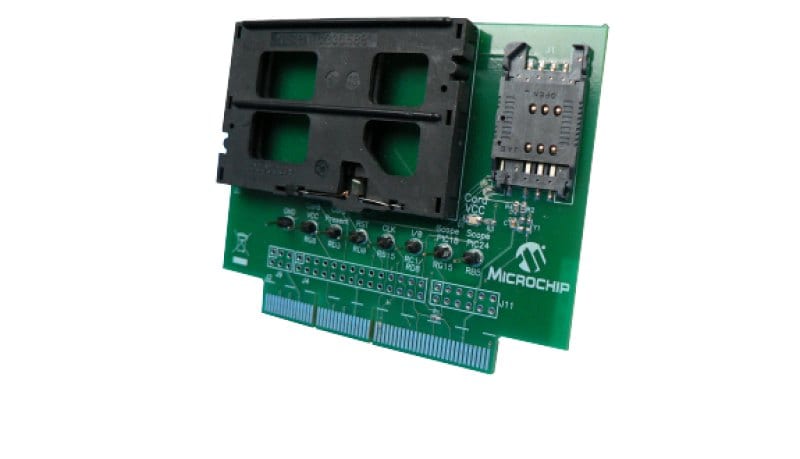

SMART CARD PICTAIL DAUGHTER BOARD

  • Supports a wide range of Smart cards and SIM cards
  • Operates on a wide range of voltages from 3.3V – 5.0V DC
  • Includes PICtail™ Daughter Board and PICtail™ Plus Board connection interfaces
  • Additionally, Microchip also offers the free Microchip Smart Card ISO-7816 Software Library and applications notes to support the development of Smart Card applications for PIC18 and PIC24 microcontrollers.
View Purchasing Options
Contact Us

Overview

The Smart Card/SIM Card (SC) PICtail™ Daughter Board is an expansion board used for evaluating, reading and writing data on Smart Cards and SIM card.

This daughter board requires an Explorer-16 Development Board, or PIC18 Explorer board to complete the board configuration.
Package Contents
The Smart Card/SIM Card (SC) PICtail™ Daughter Board is an expansion board used for evaluating, reading and writing data on Smart Cards and SIM card.

This daughter board requires an Explorer-16 Development Board, or PIC18 Explorer board to complete the board configuration.
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
Smart Card/SIM Card (SC) PICtail™ Daughter Board Download 9bffa373-e29a-4e14-a8cb-c2099fff05e8
