Part Number: VSUPEV

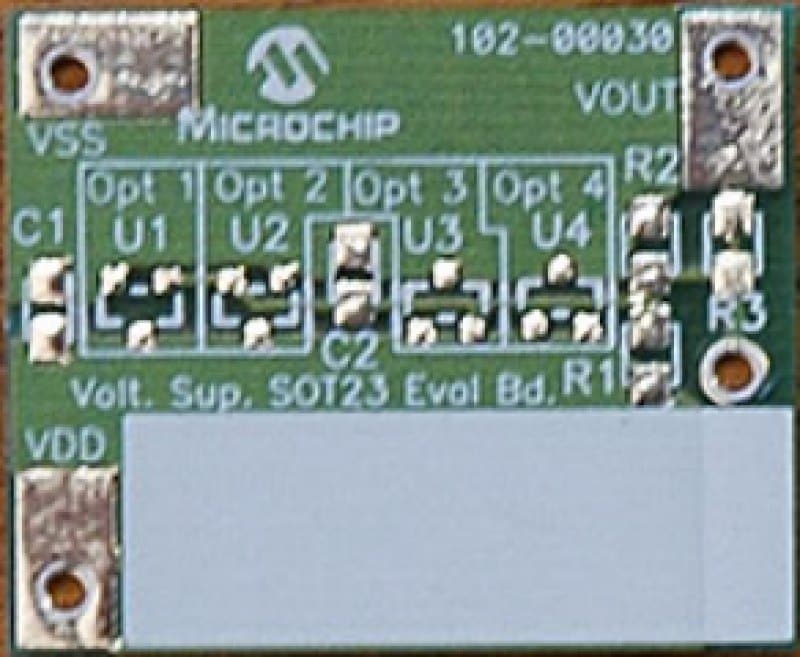

VOLTAGE SUPERVISOR SOT-23-3 EVALUATION BOARD
- Blank PCB supporting four SOT-23-3 pin outs/device foot prints
- Layout allows installation of surface mount:
Power supply filtering capacitor Device output filtering capacitor Device output Pull-up resistor Device output Pull-down (load) resistor Device output in-line resistance (for interfacing to external circuits)
- Layout provides for through hole or surface mount connection posts (VDD, VSS, and VOUT)
- White silk-screen area on board allows the user to capture details of the implemented circuit
Overview
Package Contents
The Voltage Supervisor SOT23 Evaluation Board allows the system designer to quickly evaluate the operation of Microchip’s Voltage Supervisors and Voltage Detectors in the SOT-23-3 package. The board has been made generic so that other SOT-23-3 devices (such as LDOs and Voltage References) may also be evaluated using this board. This kit comes with four blank PCBs to allow the designer to test multiple devices.
