Part Number: VSC5630EV

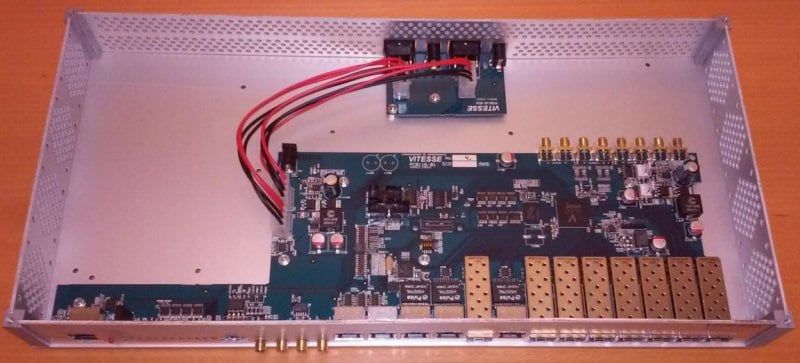

VSC5630EV - SERVAL-T, SERVAL-2 LITE, SPARX-IV-34 REFERENCE DESIGN

  • Two 10/100/1000Mbit/s dual-media Ethernet ports
  • Two 100/1000Mbit/s Ethernet SFP ports
  • Two 100/1000/2500Mbit/s Ethernet SFP ports
  • Two 10Gbit/s Ethernet SFP ports
  • One 10/100/1000BASE-T Ethernet port for management
  • 1x RS232 serial port for local management
  • 2x input, 2x output alarm interface
  • 4x SMAs for Sync-E and IEEE1588 signals
  • 1x input, 1x output RS422 timing interface
  • Redundant power supply input
  • Redundant fan controller
View Purchasing Options
Contact Us

Overview

This is the evaluation board for the VSC7415/10, VSC7435/30, VSC7436 and VSC7440 Gigabit Ethernet Switches
