Part Number: TSAL0005

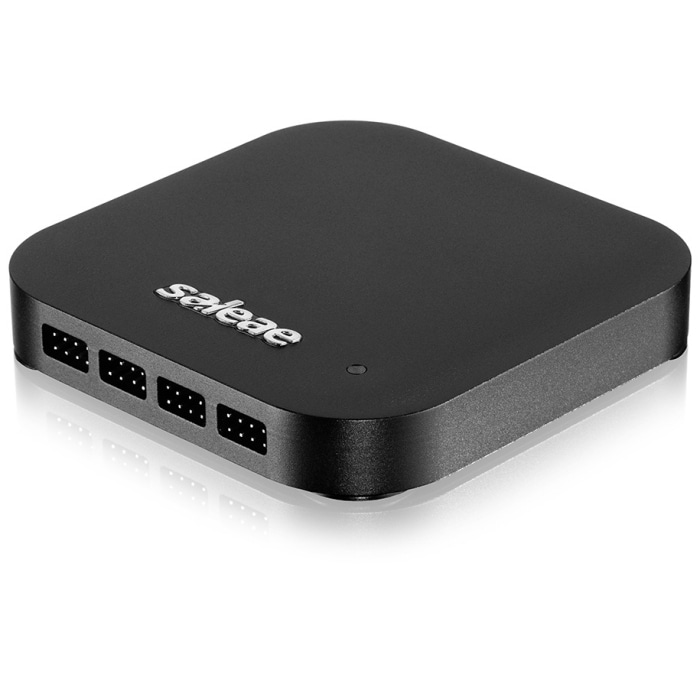

SALEAE LOGIC PRO 16 - USB LOGIC ANALYZER
Channels
- 16 digital inputs, 16 analog inputs (shared with digital channels)
Maximum Sample Rates
- Digital: 500 MSPS @ 4 channels, 100 MSPS @ 16 channels (USB 3.0 required)
- Analog: 50 MSPS @ 3 channels, 12.5 MSPS @ 13 channels, 6.25 MSPS @ 16 channels
Bandwidth
- Digital: 100 MHz square wave when sampling at 500 MSPS
- Analog: 5 MHz when sampling at 50 MSPS
Trigger
- Edge or pulse width trigger
Software
- Cross-platform Windows, Mac, and Linux support
Analog Resolution
- 12 bits, 4.88 mV per LSB
Analog Input Range
- -10V to 10V
Supported digital IO
- 1.2V, 1.8V 2.5V, 3.3V, 5.0V, RS-232, +12V TTL
Supported Protocols
- Serial
- SPI
- I2C
- CAN
- LIN
- JTAG
- MIDI
- Modbus
- USB
- UNI/O
- And more!
Overview
What is a Logic Analyzer?

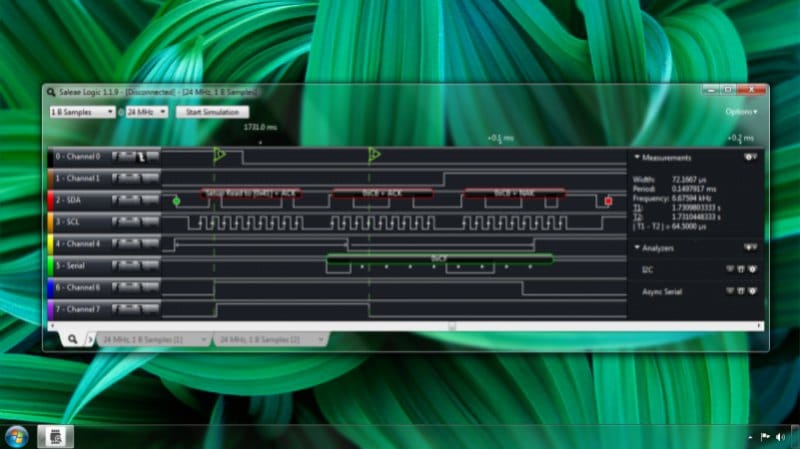

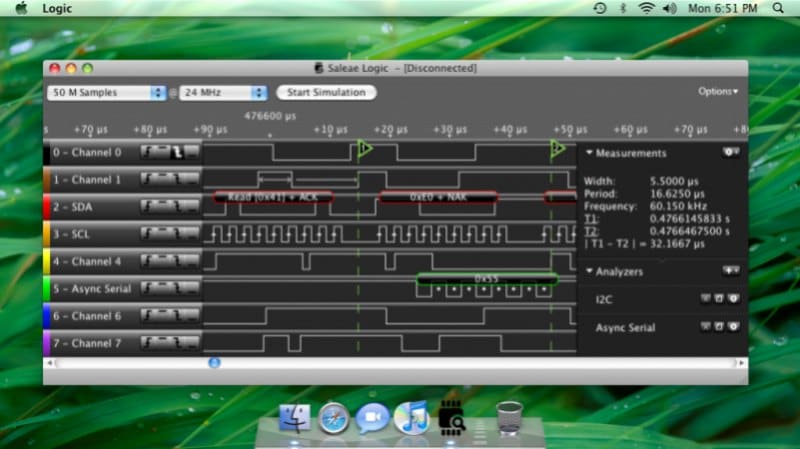

Logic analyzers are great for debugging embedded applications. Theyoperate by sampling a digital input connected to a device under test(DUT) and then displaying the recording on your computer. The SaleaeLogic devices connect to your PC over USB. Just download the software at www.saleae.com. Navigate your data easily and intuitively with Logic's fluid and fullyanimated mouse-driven interface. The Saleae products support decodingfor over 20 different protocols.
