Part Number: TPG100016-G3

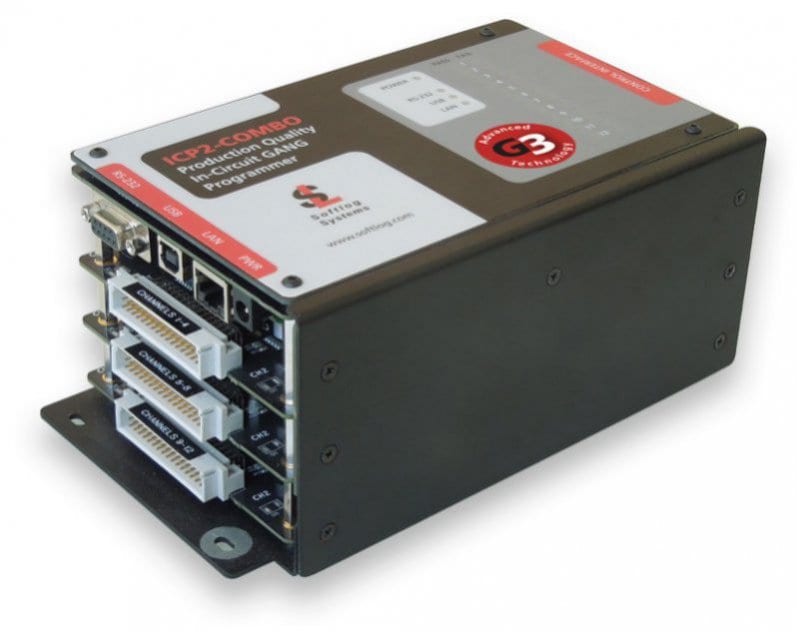

SOFTLOG ICP2COMBO(G3) 12-CHANNEL GANG PROGRAMMER
- Designed for ICSP™, JTAG, SWD, UPDI, SPI, QSPI, etc. used by Microchip, Atmel, SST and others
- Ultra-fast programming of up to 64 channels simultaneously
- Built-in opto-relay barrier for target lines
- Galvanic isolation of control and communication lines
- LAN, USB and RS-232 interface
- On-board 32MByte flash memory per channel for non-volatile storage of HEX, configuration and serialization files (6 environments)
- Multiple serialization schemes: Sequential, random, pseudo-random and user file (1 to 8 bytes, automatic “retlw” or “raw data”)
- Tests Vdd and Vpp for overload with indication by software
- Wired remote programming and environment switch: Go/Pass/Fail/Env
- Programmable Vdd (1.8 to 5.5V) and Vpp (1.8 to 13.5V)
- Programmable delay between Vdd and Vpp (0.1 to 250ms)
- Programmable clock/data speed (500KHz to 10MHz)
- Programmable Vdd source: ICP2-COMBO(G3) or target
- Vdd current limit: 250mA per channel
- Prevents damage to the connected microcontroller in case of power ON and power OFF
- Dimensions: 215 x 118 x 90mm
Overview
The ICP2COMBO(G3)-12 Production Quality In-Circuit (ICSP) 12-channel (expandable up to 60 channels) GANG Programmer is a cost-effective programmer that operates with a PC or as a standalone unit and simultaneously programs 8-bit PIC® & AVR® MCUs and serial EEPROMs & Flash ICs. ICP2COMBO(G3)-12 hardware is designed to support popular programming interfaces (ICSP™, JTAG, SWD, UPDI, SPI, QSPI, etc.)
Package Contents
- Programmer unit
- Power adapter
- USB cable
- RS-232 cable
- LAN cable (straight)
- LAN cable (crossed)
- DIN-48 mating connector - 3 pcs
- DIN-64 mating connector - 1 pcs
- USB installation instruction
- ICP2-COMBO Quick Start instruction
