Part Number: TP67E34A
300W Wireless Power Transmitter/Receiver
- Nominal DC Input Voltage, 24V
- Operating DC Input Voltage Range, 11V-37V
- Up to 90% Efficiency at 300W Power
- Foreign Object Detection
- Input Overvoltage and Undervoltage Protection
- Overcurrent and Overtemperature Protection
- Maximum Receiver Output Power is Up to 300W
- Maximum Receiver Output Current is 8.5A
- Nominal Receiver Output Voltage is 24V
- Adjustable Receiver Output Voltage from 12V to 36V

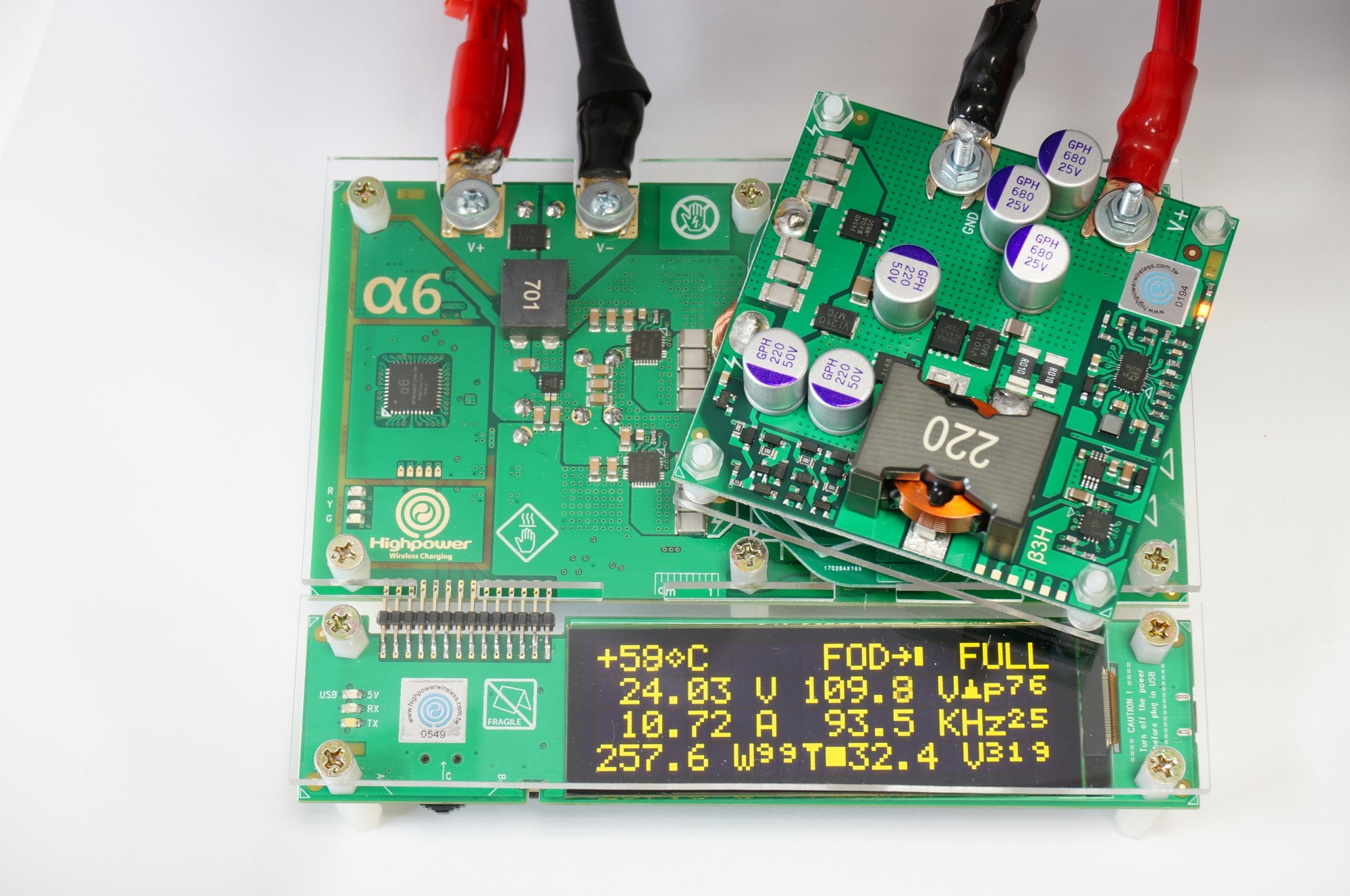

Overview
The 300W Wireless Power Transfer reference design consists of a Power Transmitter and a Power Receiver. The Power Transmitter design is based on the WP300TX01 device and the Power Receiver design is based on the WP300RX01 device. The 300W wireless power reference design implements a proprietary protocol developed from several years of R&D and granted U.S patents in the field of wireless power.
The system operates at more than 90% efficiency at 300W power and a Z-distance of 5-10 mm.
Reference Design Documents: Visit 300W Wireless Power Reference Design WebPage for reference design documents
