Part Number: TDGL021

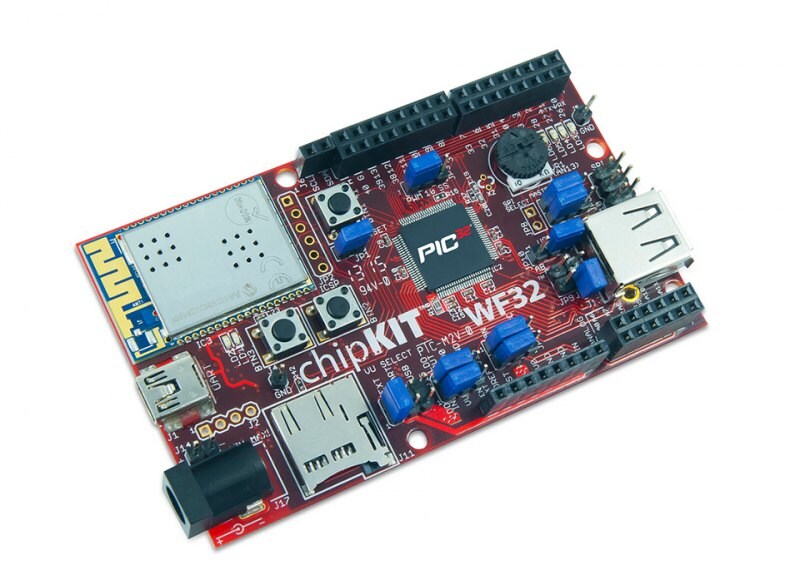

TDGL021 - CHIPKIT WF32 WIFI DEVELOPMENT BOARD
- PIC32MX695F512L processor with 512K Flash, 128K RAM
- Up to 80 MHz operating speed
- MRF24WG0MA Wi-Fi module
- microSD card connector
- USB 2.0 OTG interface
- Four user LEDs, two buttons
- 42 available I/O lines
Overview
The chipKIT™ WF32™ by Digilent is an easy-to-use platform for developing Wi-Fi® applications. As with other chipKIT boards, it uses a modified version of the original Arduino® IDE for compatibility with existing code examples, tutorials and resources. Also compatible with MPLAB® X IDE.
The WF32 includes several peripherals on board, including Wi-Fi radio module, USB OTG (host or device) interface, microSD™ card slot, buttons, LEDs, potentiometer and lots of extra I/O. A full-featured HTML server application is available by download. Can be powered by USB, or an external power supply.
Digilent is a trusted third-party tool provider.
MPLAB Harmony Support available:
- One Board Support Package (BSP)
- One TCP/IP demonstration
- Two USB demonstrations
