Part Number: MIKROE-3788
SECURE SOIC CLICK
- 8-PIN SOIC Socket
- 8 bit DIP Switch for selection of the I/O interface
- Default Power of 3.3V
- Jumper for selection of Parasitic power mode when in SWI mode
Overview

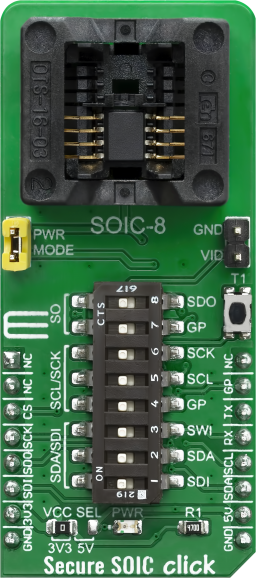

The MikroElektronica Secure SOIC click board is an 8-pin SOIC socket board that works with Microchip Security Products including the ATECC608B, ATECC608A, ATSHA204A and all TrustFLEX and Trust&GO variants of those products. The board has an onboard dip switch that allows selection of an I2C or SWI interface. Through use of an onboard Jumper a parasitic power option is available when using the SWI interface.
More Information can be found on the MikroElektronica site. Secure SOIC Click | Mikroe
Package Contents
- 1 - Secure SOIC Click Socket board
- Crypto Authentication Sample Packs (Check with MikroE for details)
Silicon Products
Product |
Title |
Product |
Title |
|---|---|---|---|
| ATECC608B | Network and accessories secure authentication | ATECC608B | Network and accessories secure authentication |
| ATECC608B-TCSM | Network and accessories secure authentication | ATECC608B-TCSM | Network and accessories secure authentication |
| ATECC608B-TNGTLS | Pre-provisioned secure element for TLS system | ATECC608B-TNGTLS | Pre-provisioned secure element for TLS system |
| ATECC608B-TFLXTLS | Pre-provisioned secure element for TLS system | ATECC608B-TFLXTLS | Pre-provisioned secure element for TLS system |
| ECC608-TFLXWPC | Secure Element for Qi Wireless Charging WPC 1.3 compliant | ECC608-TFLXWPC | Secure Element for Qi Wireless Charging WPC 1.3 compliant |
