Part Number: RN-XV-RD2
RN-XV-RD2 REFERENCE DESIGN FOR THE RNXV MODULE SERIES
- Reference design for evaluating the RN171XV 802.11 b/g Wi-Fi module
- Kit includes a standard USB cable that connects directly from the board to a PC for programming the module over the UART
- Contains 2 10-amp relays capable of switching up to 240V
- Built in temperature sensor
- External temperature probe connector
- 3 status LEDs that mimic the LEDs on the RN171XV module
- 4 pushbutton switches and jumpers to simplify development
- 10 GPIO pins accessible via the 3.3V headers
- Voltage regulator
- Supports several RN171XV antenna options: Wire, SMA connector, U.FL connector
Overview

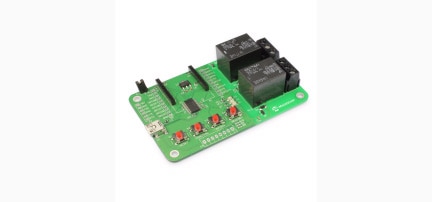

The RN-XV-RD2 is a dual relay I/O reference design that demonstrates the RN171XV series of Wi-Fi modules. This convenient reference design includes a USB cable that connects directly from the board to a PC for programming the module over the UART. The board has 2 relays capable of switching up to 240 volts and multiple push buttons for reset, ad hoc/WPS mode, and AP mode. Also includes status LEDs and jumpers for quickly and easily evaluating the RN171XV series of modules.
Package Contents
- RN-XV-RD2 Dual Relay Board
- USB cable
