Part Number: RN-XV-EK1
RN-XV-EK1
- Evaluation kit for the RN171XV module based on the robust RN171 Wi-Fi module
- Supports several RN171XV antenna options: Wire, SMA connector, U.FL connector
- WPS push button for easy configuration
- Reset push button wakes the module
- Standard USB connector
- Hardware interface: USB via FTDI chipset
Overview
The RN-XV-EK1 is an evaluation kit for the RN171XV series of modules. The RN171XV module is a certified Wi-Fi solution especially designed for customers who want to migrate their existing 802.15.4 architecture to a standard TCP/IP based platform without having to redesign their existing hardware.

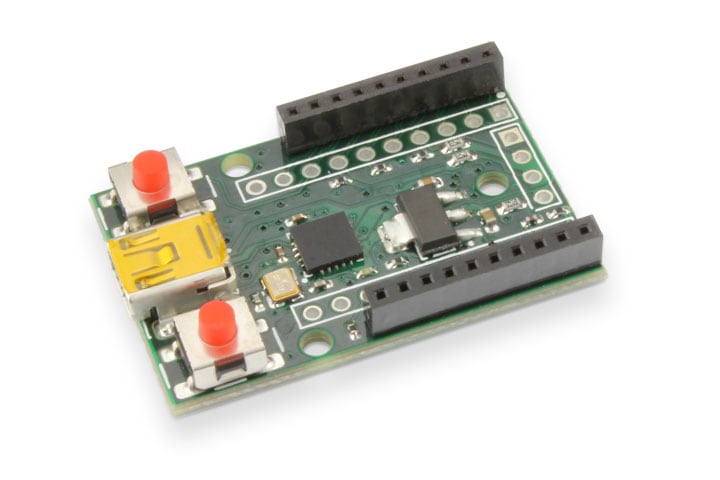

The RN-XV-EK1 board connects to a PC via a standard USB cable (included in the kit), and provides 2 push button switches to control WPS mode and to reset the module.
Package Contents
- RNXV Evaluation Board
- USB cable
