Part Number: MIC5166YML-EV

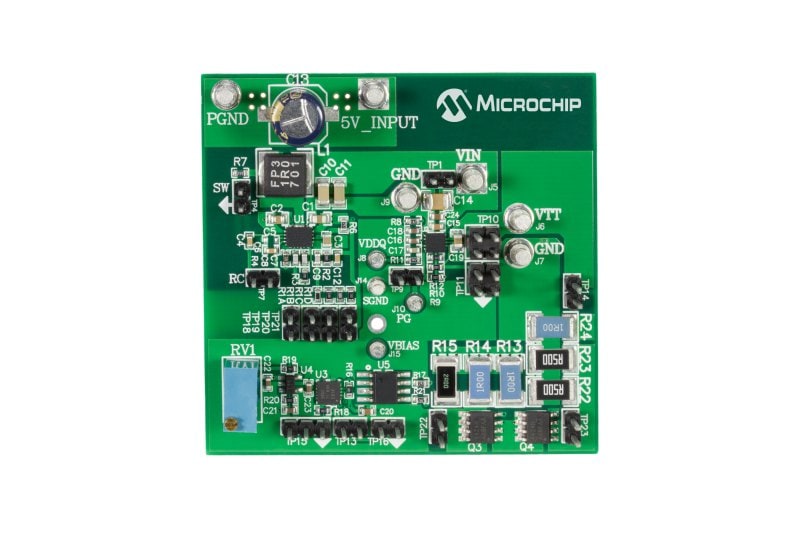

MIC5166YML EVALUATION BOARD
- Refer to User Guide.
Overview
This evaluation board is used to demonstrate the MIC5166. The MIC5166 is a ±3A, high-speed, linear, low input voltage, Double Data Rate (DDR) or Quad Data Rate (QDR), memory terminator power supply. The MIC5166 has two internal N-channel power MOSFETs, forming a linear regulator that can both sink and source current. This regulator design is used for DDR or QDR termination.
Package Contents
N/A
