Part Number: MCP6XXXEV-AMP3

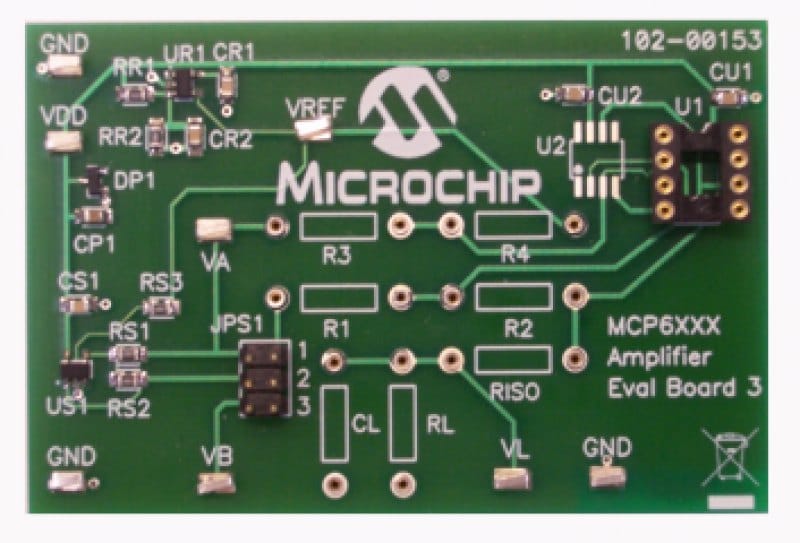

MCP6XXX AMPLIFIER EVALUATION BOARD 3
- All amplifier resistors and capacitors are socketed
- All of the component labels on board keep consistent with those on schematic generated in the Mindi™ Amplifier Designer
- Supports all Microchip single op amps:
– 8-pin PDIP package (e.g., MCP6021) is socketed
– 8-pin SOIC package can be accommodated
- Test points for connecting lab equipment
- Single supply configuration
Package Contents
The MCP6XXX Amplifier Evaluation Board 3 is designed to support the difference amplifier circuits which are generated by the Mindi™ Amplifier Designer.
