492-mcp6xxxev-amp2
492-mcp6xxxev-amp2

Part Number: MCP6XXXEV-AMP2

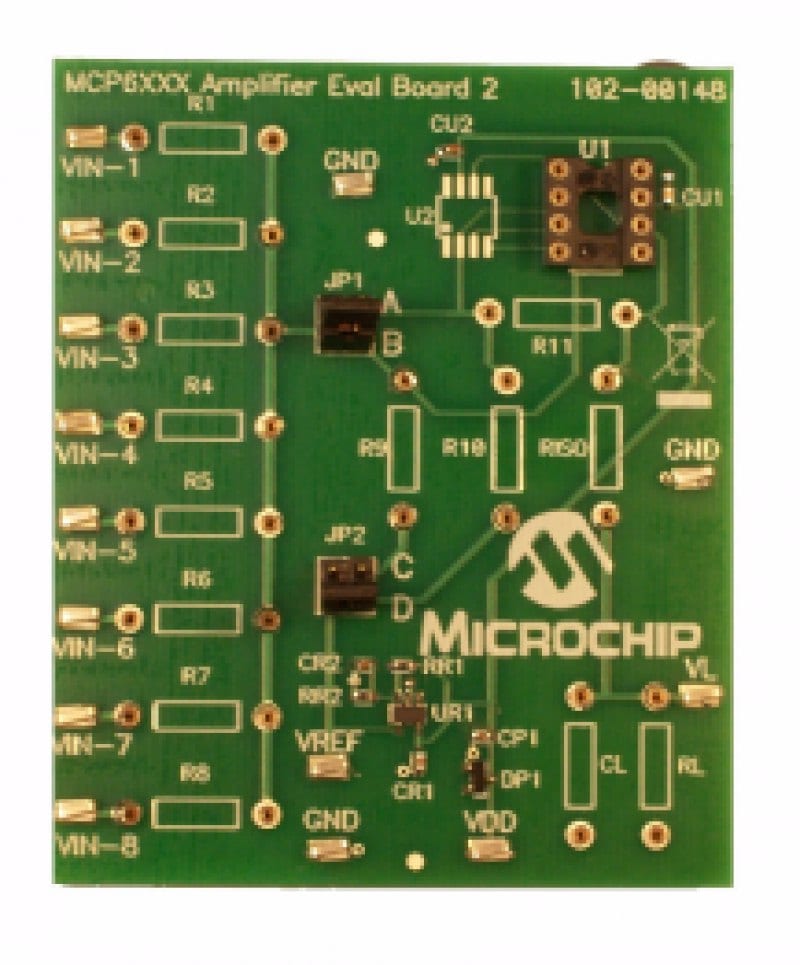

MCP6XXX AMPLIFIER EVALUATION BOARD 2

  • All amplifier resistors and capacitors are socketed
  • All of the component labels on board keep consistent with those on schematic generated in the Mindi™ Amplifier Designer
  • Supports all Microchip single op amps:


– 8-pin PDIP package (e.g., MCP6021) is socketed
– 8-pin SOIC package can be accommodated

  • Test points for connecting lab equipment
  • Single supply configuration
View Purchasing Options
Contact Us

Overview

The MCP6XXX Amplifier Evaluation Board 2 supports inverting summing amplifiers and non-inverting summing amplifiers


Package Contents
The MCP6XXX Amplifier Evaluation Board 2 supports inverting summing amplifiers and non-inverting summing amplifiers


To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
MCP6021/2/3/4 Data Sheet Download 51ac4add-039b-40e5-a38b-d9e898a0feb1
MCP6XXX Amplifier Eval Board 2 Gerbers Download 62fb97ec-05f1-49e4-a9c3-5b52dfa876ea
MCP6XXX Amplifier Evaluation Board 2 User's Guide Download 622e6054-08be-4771-9ada-6d8e296f9db6
