531-mcp3423ev
531-mcp3423ev

Part Number: MCP3423EV

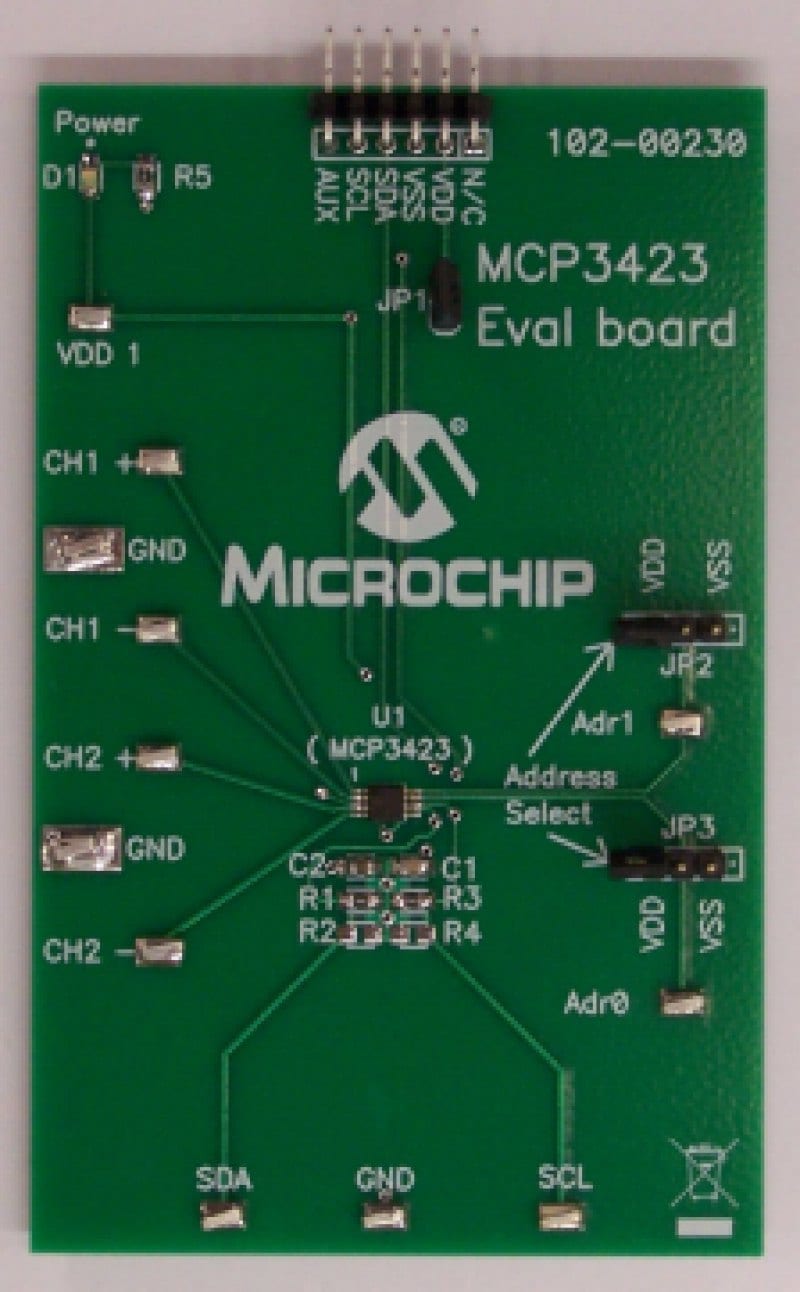

MCP3423 EVALUATION BOARD

  • This board works with the PICKit Serial
  • This board allows the user to measure the unknown input voltage with a minimum amount of preparation
  • Write and read the MCP3423 configuration register bits using the PICKit Serial Analyzer
  • Read the ADC conversion results using the PICkit Serial Analyzer
  • Many test pads including the SCL and SDA allow to monitor the I2C signals trafics for the data collections
  • The user can connect the SDA and SCL pins to their own PCB boad and evaluate the device performance
  • JP2 and 3 jumpers make easy for the address selection pin function test.
View Purchasing Options
Contact Us

Overview

Thie MCP3423 Evaluation Board is designed for a quick evaluation of the MCP3423 device. The MCP3423 Evaluation Board contains an MCP3423 18-bit Delta-Sigma Analog-to-Digital Converter (ADC). The MCP3423 is a 2-channel 18-bit Delta-Sigma ADC device with various configuration options. The board has analog input connection pads and various test pads. The user can evaluate the MCP3423 by using the PICkit Serial or by connecting to their application boards. The PICkit serial GUI provides the output codes.
Package Contents
Thie MCP3423 Evaluation Board is designed for a quick evaluation of the MCP3423 device. The MCP3423 Evaluation Board contains an MCP3423 18-bit Delta-Sigma Analog-to-Digital Converter (ADC). The MCP3423 is a 2-channel 18-bit Delta-Sigma ADC device with various configuration options. The board has analog input connection pads and various test pads. The user can evaluate the MCP3423 by using the PICkit Serial or by connecting to their application boards. The PICkit serial GUI provides the output codes.
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
MCP3422/3/4 Data Sheet Download b2fe58cc-f102-4acc-b3f2-e242f0a49cb0
MCP3423 Evaluation Board User's Guide Download 57492828-d199-4fdd-8b31-59880c65f27a
MCP3423 Evaluation Board Gerbers Download 07e7ffa8-b0c8-4cdd-b553-b62f4153afeb

Application Notes

Title
Date
Document Category
Battery Fuel Measurement Using Delta-Sigma ADC Devices 25 Jan 2008 Link Application Notes
