534-mcp3422ev
534-mcp3422ev

Part Number: MCP3422EV

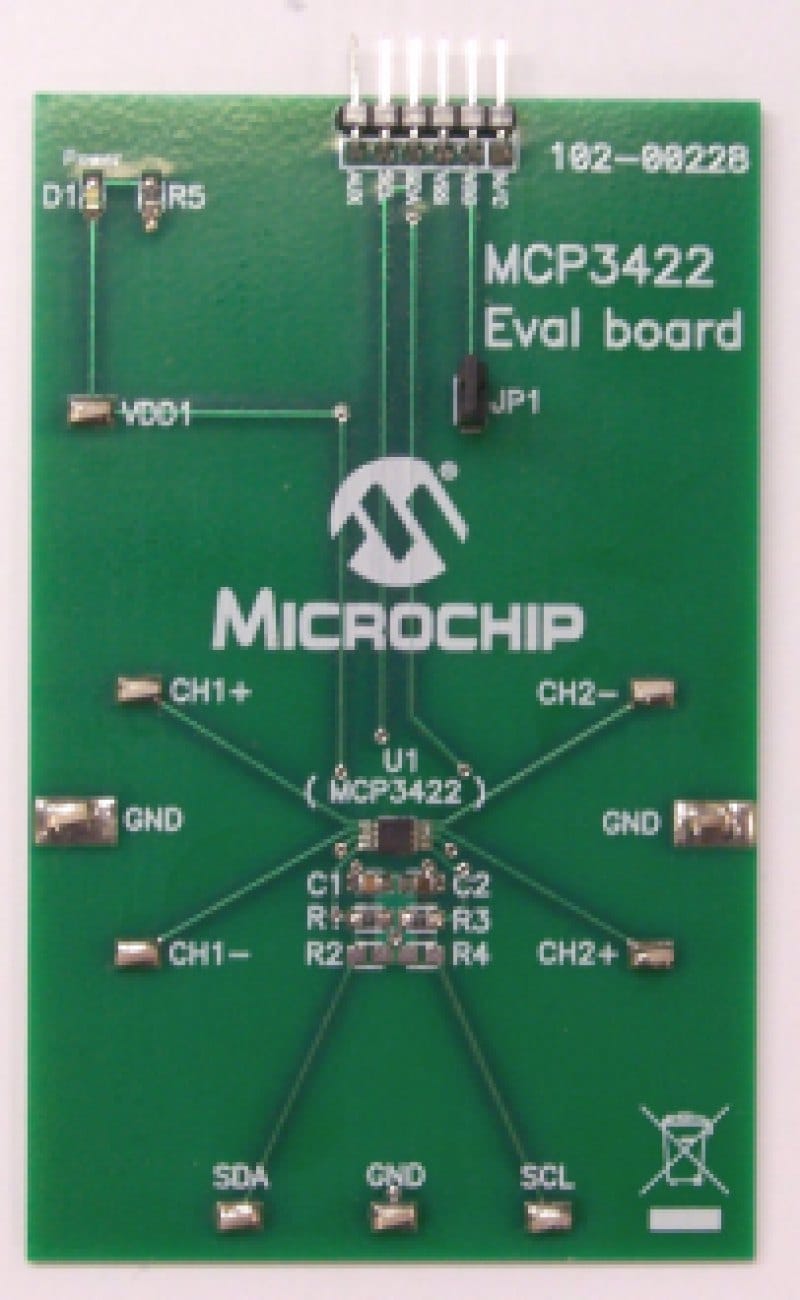

MCP3422 EVALUATION BOARD

Has been replaced with EV45V72A
  • Evaluate the MCP3422 using the PICKit Serial Analyzer
  • The user can write the MCP3422 configuration register and read output codes by using the PICKit Serial Analyzer
  • The sensor signal can be connected to the input pads of the board
  • I2C communication signal (SCL and SDA) can be monitored at the SCL and SDA pins on the board
  • Evaluate the MCP3422 performance using by simply connecting the SCL and SDA pins to the customer's PC Board.

Overview

The MCP3422 Evaluation Board (P/N MCP3422EV) contains an MCP3422 18-bit Delta-Sigma Analog-to-Digital Converter (ADC). The MCP3422 is a 2-channel ADC device with various options. The board has analog input connection pads and various test pads. The user can connect inputs and test the conversion results using the PICkit Serial Analyzer and its PC graphic user interface (GUI).

Package Contents

The MCP3422 Evaluation Board (P/N MCP3422EV) contains an MCP3422 18-bit Delta-Sigma Analog-to-Digital Converter (ADC). The MCP3422 is a 2-channel ADC device with various options. The board has analog input connection pads and various test pads. The user can connect inputs and test the conversion results using the PICkit Serial Analyzer and its PC graphic user interface (GUI).

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
MCP3422/3/4 Data Sheet Download b2fe58cc-f102-4acc-b3f2-e242f0a49cb0
MCP3422 Evaluation Board User's Guide Download 5a199e99-9386-4bc6-8afe-5b2b10e854e0
MCP3422 Evaluation Board Gerbers Download 3558a4fe-11f6-48ad-94bf-ba4b4cbbe1f9

Application Notes

Title
Date
Document Category
Battery Fuel Measurement Using Delta-Sigma ADC Devices 25 Jan 2008 Link Application Notes
