Part Number: MCP1640EV-SBC

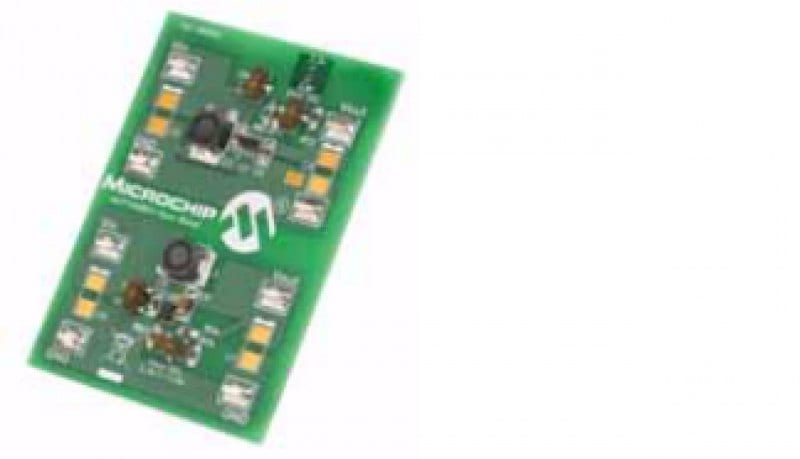

MCP1640 SYNC BOOST CONVERTER EVALUATION BOARD
- Input voltage range, VIN: 0.35V to 5.5V, with VIN ≤ VOUT; 1mA load after start-up
- Fixed output voltage: 2.0V or 3.3V and 3.3V or 5.0V, selected using a mini dip switch on board
- Output current: typical 100mA @ 3.3V Output, 1.2V Input or 350mA @ 5.0V Output, 3.3V Input
- Start-up voltage: 0.65V at VIN = 1.2V, VOUT = 3.3V and IOUT = 1mA, resistive load
- Automatic PFM/PWM Operation
- PWM Switching Frequency = 500 kHz
- Enable state selectable using mini-dip switch on board
- Peak Input Current Limit up to 800mA
- Over-temperature (if the die temperature exceeds 150°C, 10°C hysteresis)
- For standby applications operates and consumes only 19μA while operating at no load and provides a true disconnect from input to output while shutdown
Overview
- Easy-to-use and minimum number of external components power supply solution for applications powered by one-cell, two-cell, or three-cell alkaline, NiCd/NiMH; one-cell Li-Ion or Li-Polymer batteries
- Selection of the best operating mode for efficiency (PWM/PFM)
- A wide input voltage range (0.35 to 5.5V) and low start-up voltage (0.65V)
- PCB layouts recommendation for SOT23-6 and 2x3mm-8 DFN packages
- Three common output voltages to evaluate: 2.0V, 3.3V and 5.0V enable selection (when disabled, the MCP1640 disconnects the path from input to output for “true-disconnect”).
Devices Supported: MCP1640
Package Contents
This evaluation board uses the MCP1640 in a high-efficiency (up to 96%), fixed frequency (500 kHz), step-up DC-DC converter. It demonstrates: - Easy-to-use and minimum number of external components power supply solution for applications powered by one-cell, two-cell, or three-cell alkaline, NiCd/NiMH; one-cell Li-Ion or Li-Polymer batteries
- Selection of the best operating mode for efficiency (PWM/PFM)
- A wide input voltage range (0.35 to 5.5V) and low start-up voltage (0.65V)
- PCB layouts recommendation for SOT23-6 and 2x3mm-8 DFN packages
- Three common output voltages to evaluate: 2.0V, 3.3V and 5.0V enable selection (when disabled, the MCP1640 disconnects the path from input to output for “true-disconnect”).
Devices Supported: MCP1640
Documentation
|
Title
|
|||
|---|---|---|---|
| MCP1640 Sync Boost Converter Evaluation Board - Schematic | Download | ||
| MCP1640 Sync Boost Converter Evaluation Board - BOM | Download | ||
| MCP1640 Sync Boost Converter Evaluation Board - Gerbers | Download | ||
| MCP1640/B/C/D Data Sheet | Download | ||
| MCP1640 Synchronous Boost Converter Evaluation Board User's Guide | Download |
