Part Number: MA320012

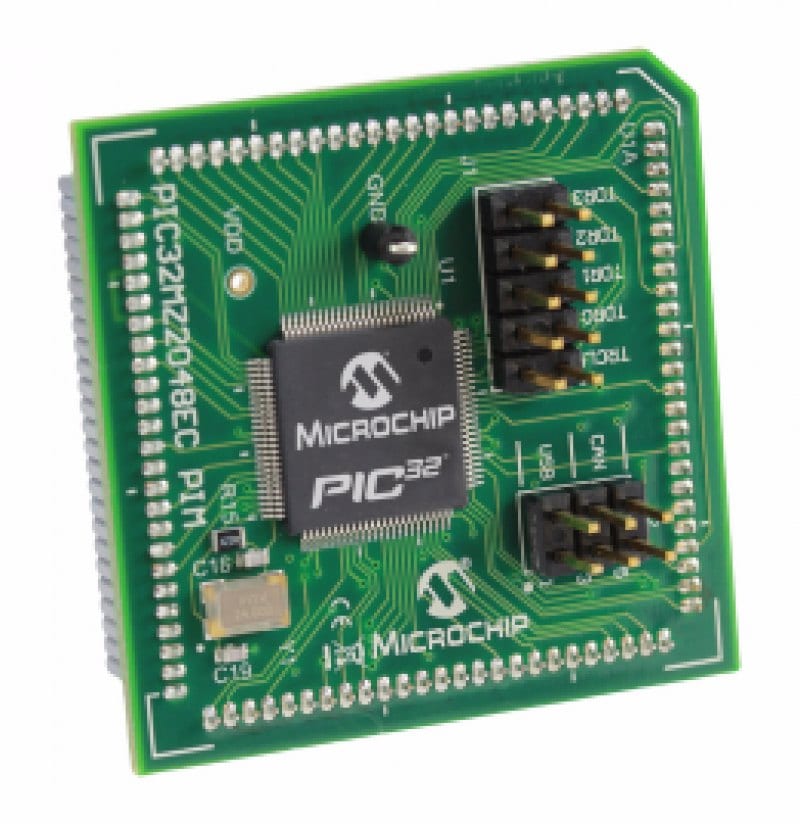

PIC32MZ EC PROCESSOR PLUG-IN MODULE (PIM)

.
View Purchasing Options
Contact Us

Overview

The PIC32MZ EC PIM is designed to demonstrate the capabilities of the PIC32MZ Embedded Connectivity family of devices using explorer 16 Development Board. It enables USB, Ethernet, and CAN development with PIC32MZ Series. A 200 MHz PIC32MZ2048ECH100 MCU with 2 MB Flash, 512 KB RAM, 40 ch. ADC, Hi-Speed USB, CAN 2.0b and 10/100 Ethernet is installed on the PIM.
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
PIC32MZ Embedded Connectivity (EC) 100-pin to 100-pin Plug-In Module (PIM) IS Download c5358a7d-b5a2-4276-b6bd-07ff0682b062
