Part Number: MA240019

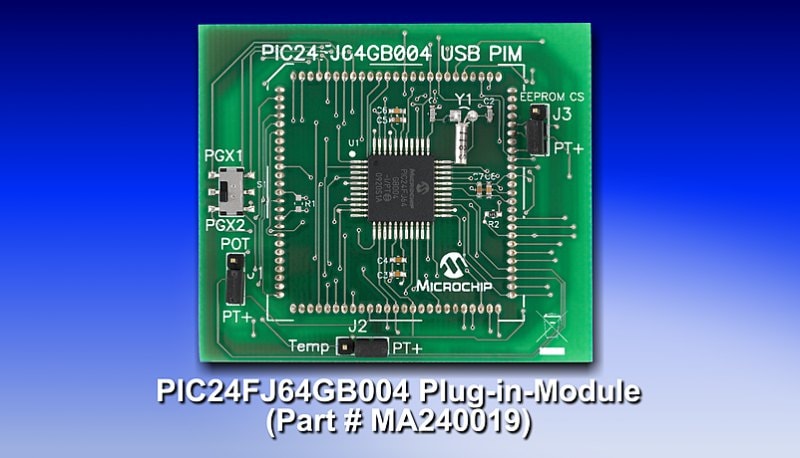

PIC24FJ64GB004 PLUG-IN-MODULE

.

View Purchasing Options
Contact Us

Overview

Processor Plug-In Modules are small circuit boards to be used with the various Microchip Development Boards to evaluate various MCU families. These plug into the main processor socket of the Development Boards so that different microcontrollers can be used for prototyping, demonstration or development --quickly and easily.

The PIC24FJ64GB004 PIM is designed to demonstrate the capabilities of the PIC24FJ64GB004 family using the Explorer 16 Demonstration Board kit and the PICtail™ Plus daughter boards. The PIC24FJ64GB004 is a 44-pin device with USB On-The-Go (OTG), nanoWatt XLP™ Technology and Peripheral Pin Select (PPS) features. Due to the flexibility allowed by the PPS feature, the 44-pin device is capable of performing all of the base functions on the 100-pin Explorer 16 board. In addition, the PIM is compatible with most of the PICtail Plus daughter boards for the Explorer 16, including the USB PICtail Plus Daughter Board (AC164131).

This PIM can be used to evaluate the following MCUs:

  • PIC24FJ32GB002
  • PIC24FJ32GB004
  • PIC24FJ64GB002
  • PIC24FJ64GB004
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
PIC24FJ64GB004 PIM Information Sheet Download 44598ea7-cc07-4315-8a60-e689cbfc9768

Software

Title
Date
Explorer 16/32 Board Demo Code Download 13 Feb 2024
