Part Number: EVB-LAN9354

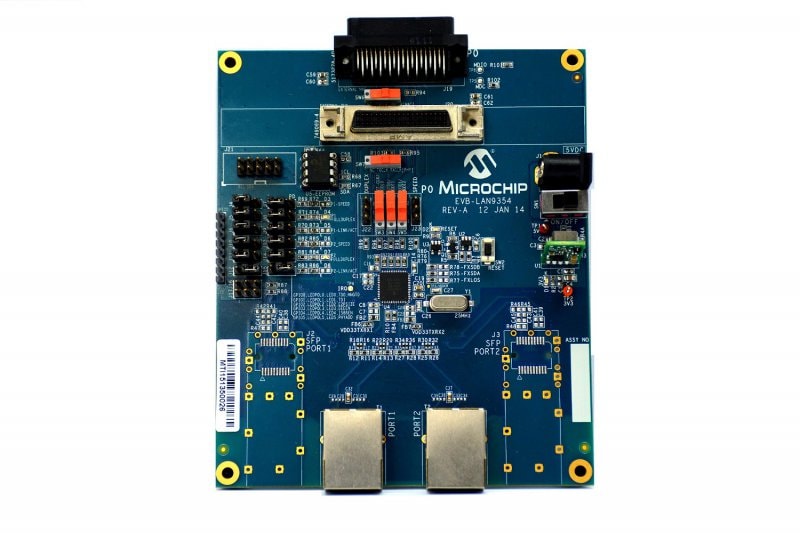

EVB-LAN9354 - LAN9354 - 3-PORT 10/100 MANAGED ETHERNET SWITCH WITH SINGLE RMII

  • The EVB-LAN9354- supports two Integrated PHY's via on board RJ45 Connectors.
  • The EVB-LAN9354-supports Single RMII
  • Option for on-board Fiber Interface via SFP module
  • The on-board EEPROM to configure the Switch configuration



Buy Now
Contact Us
Part Number: Quantity: Price per Unit (in USD): Total Amt:
Continue Shopping Go to Cart

Overview

The EVB-LAN9354 is an Evaluation Board that utilizes the LAN9354 to provide a fully functional three-port Ethernet Switch with Single RMII Interface . The EVB-LAN9354 provides two fully integrated MAC/PHY Ethernet ports Port 1 & 2 via on-board RJ45 connectors. Port 0 provides two MII port connectors which support the following: An external RMII -capable MAC with LAN9354 in PHY mode, via the on-board 40-pin male MII connector, an external MII-/Turbo MII-capable PHY with LAN9354 in MAC mode, via the on-board 40-pin female MII connector.
