Part Number: EV73P75A

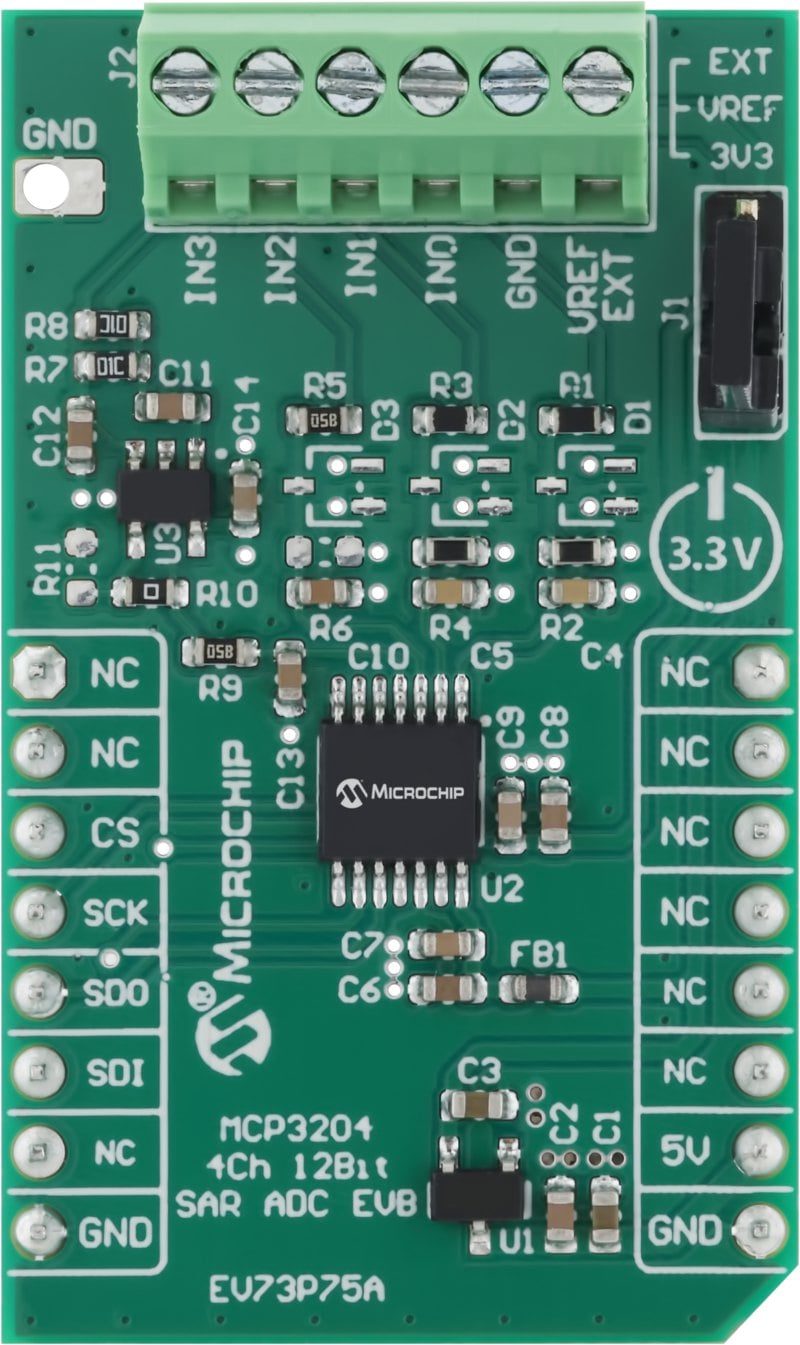

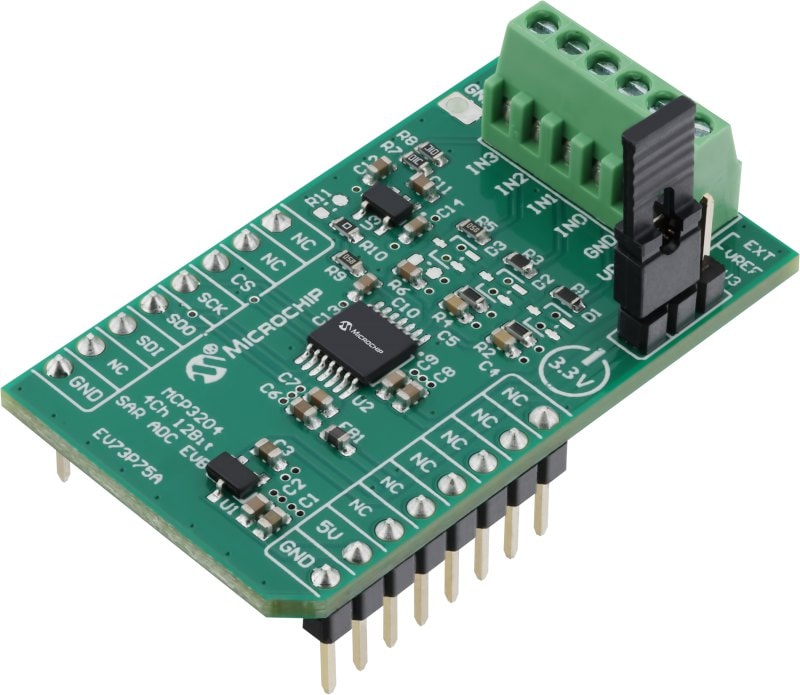

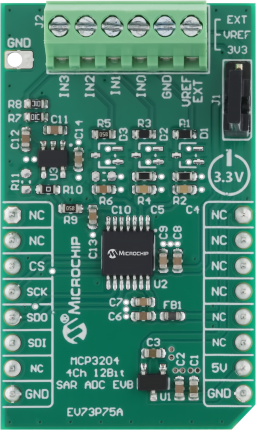

EV73P75A MCP3204 4Ch 12Bit SAR ADC EVB

Hardware Features
- mikroBUS compatible for connectivity with the MCU platforms
- Terminal block connector for the input analog voltages
- ADC input signal conditioning circuits: Voltage dividers and input filters

Firmware Features
- Code example for the Curiosity PIC32MX470 Development Board (instructions on how to use the board included)

View Purchasing Options
Contact Us

Overview

The EV73P75A MCP3204 Evaluation Board provides the opportunity to evaluate the performance of Microchip's MCP3204 4-Channel 12-Bit SAR ADC, which uses the SPI protocol. The board is mikroBUS™ compatible for direct communication with other MCU platforms.

Package Contents
  • EV73P75A MCP3204 4Ch 12Bit SAR ADC EVB
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
EV73P75A Schematics Download 897f0f6d-dabd-42fe-83c8-ff844f8bbee0
EV73P75A Design Files Download f974ad7f-3cbf-4929-af32-55ffce018346
EV73P75A 3D PDF Download 563d9b54-ca3e-497e-8444-132e400daf2e
EV73P75A BOM Download af2f356a-50a4-46fc-97bc-833db9bca4f4
EV73P75A Gerbers Download 1b41cd44-abf0-41dc-b712-eebbd806e674

Software

Title
Date
EV73P75A Firmware Download 28 Feb 2024

Silicon Products

Product
Title
Product
Title
MCP3204 12-Bit, 100kSPS, 4-Channel ADC MCP3204 12-Bit, 100kSPS, 4-Channel ADC
