Part Number: EV71C64A
4 x 4-pair PSE EVB featuring PD77728 Automode loaded w/IEEE 802.3bt FW
- Featuring PD77728 8-Port PSE PoE Manager operating in Unmanaged Auto Mode
- IEEE 802.3bt compliant
- RJ45 Gang (contains four RJ45 connectors)
- Four 4-Pair Ports Structured by PD77728
- Switch Domain USB Interface to be Connected to a PC with Microchip GUI
- PoE Controller Manual Reset and Serial Communication Setting
- Green and Yellow Bi-Color LED Status Indication for all Four Ports
- Requires only a single power source
- Evaluation board working temperature: 0°C to +40°C
- RoHS compliant
Overview

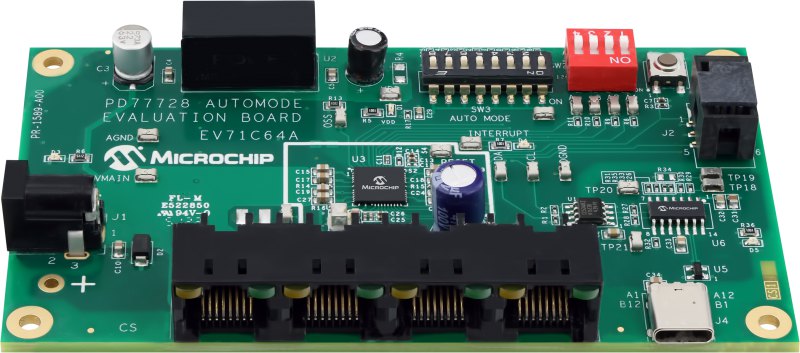

The EV71C64A Evaluation Board (EVB) is developed based on Microchip’s PD77728 PoE manager. The board demonstrates four (4) IEEE® 802.3bt 4-pair ports using PD77728 in Unmanaged Auto Mode. The PD77728 device is a part of Microchip’s seventh generation IEEE 802.3bt compliant Power over Ethernet (PoE) Power Sourcing Equipment (PSE) family. This device is a fully integrated eight port PoE manager with integrated Field Effect Transistor (FET) switches and current sense resistors. The PD77728 device supports IEEE 802.3bt standard and legacy/pre-standard PD detection.
Documentation
|
Title
|
|||
|---|---|---|---|
| EV71C64A Auto Mode Evaluation Board User Guide for PD77728 | Download |
