3306-evb-lan8770-rmii
3306-evb-lan8770-rmii

Part Number: EV48S68A

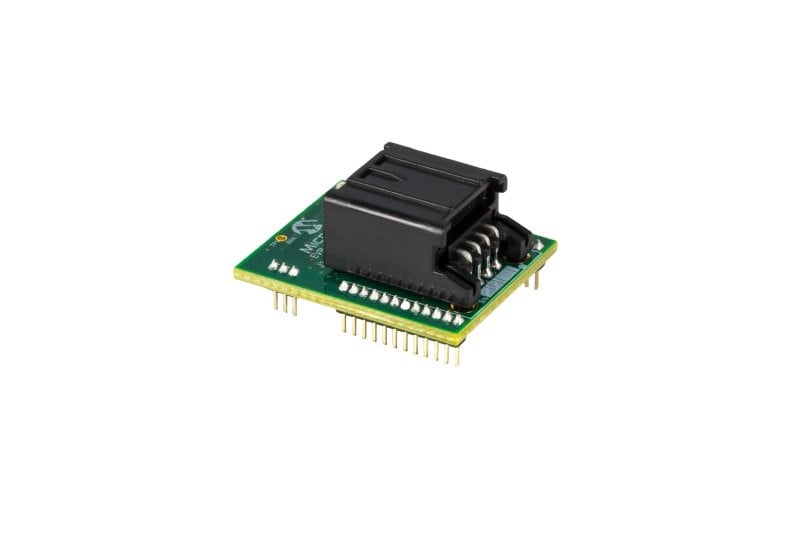

EVB-LAN8770-RMII

• Xplained Ultra RMII connector to interface with Ethernet MCU boards.
• 4-pin Molex 34793-0040 connector for 100BASE-T1 physical interface
• Single LED Indicators for speed/link/activity status

View Purchasing Options
Contact Us

Overview

The EVB-LAN8770_RMII board is a 100BASE-T1 Ethernet PHY plug-in card for the SAMS70/E70/V70/V71 Xplained Ultra board. Together, the two boards enable the evaluation of the LAN8770 PHY, including the low power SLEEP feature.

System Requirements

SAMS70/E70/V70/V71 Xplained Ultra board

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
EVB-LAN8770-RMII Evaluation Board User's Guide Download b31a2ab4-8719-4bae-a46b-d08a9dcbf378

Software

Title
Date
LAN8770 Linux Driver and Library Files 01 Jan 1970 Link

Silicon Products

Product
Title
Product
Title
LAN8770 100Base-T1 Ethernet Transceiver LAN8770 100Base-T1 Ethernet Transceiver
