Part Number: EV36K06A
EVB-LAN9360 AVB Audio Endpoint Evaluation Board
Features of the LAN9360 AVB Audio Endpoint Evaluation Board:
- AVB protocols out-of-the-box
- Integrated Analog Audio CODEC (stereo IN/OUT)
- Integrated MEMS microphone
- RMII interface for PHY Daughter Boards
Overview
The LAN9360 AVB Audio Endpoint Evaluation Board is an evaluation platform for Digital Audio Trans-missions over Ethernet AVB. It comes with a set of AVB protocols integrated inside LAN9360. It allows evaluating and prototyping digital audio applications over Ethernet in no time and with less efforts.
Configuration of LAN9360 can be done using MPLAB Network Creator, a fast and intuitive PC Software.
An Ethernet PHY Module must be purchased separately. See System Requirements.
Package Contents
The package includes the EVB-LAN9360 board.
Cables, PHY module or programming tool are not included.
System Requirements
PHY daughter boards:

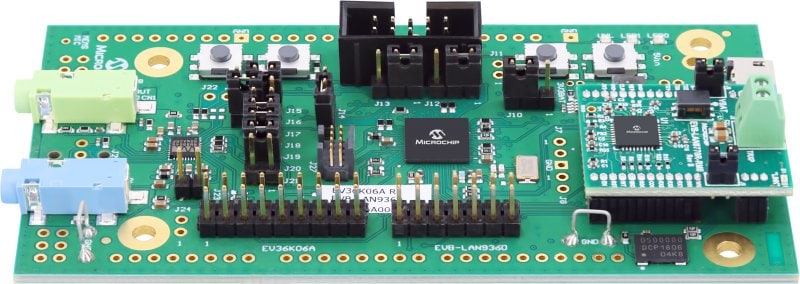

- 100BASE-T1: EVB-LAN8770-RMII (EV48S68A)

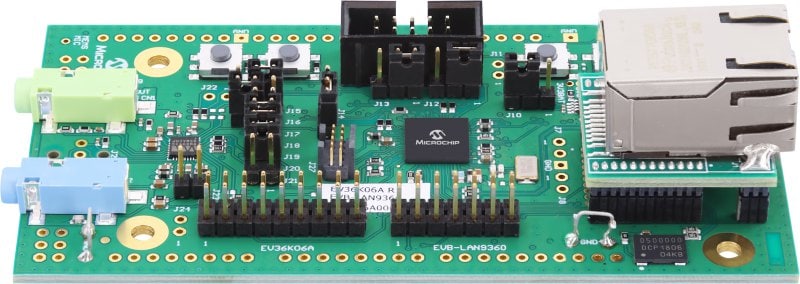

- 100BASE-TX: KSZ8041 PHY Daughter Board (AC320004-5)

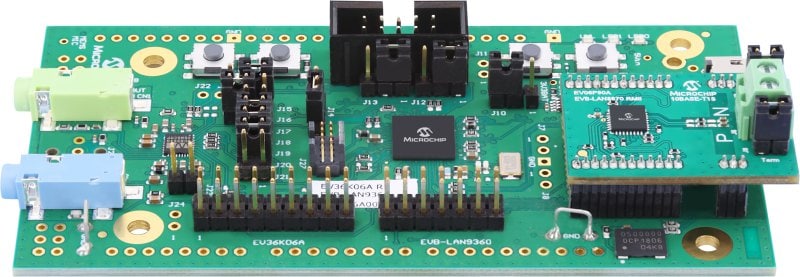

- 10BASE-T1S: EVB-LAN8670-RMII (EV06P90A)
Programming tools:
