Part Number: EV29G58A

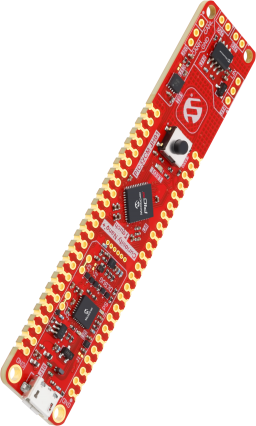

PIC32CM JH01 Curiosity Nano+ Touch Evaluation Kit
Please enter coupon code "30OFFJH01" for 30% discount when you purchase.
Click here to download the Getting Started Example Application.
Explore the features of the PIC32CM JH01 Curiosity Nano kit:
- PIC32CM5164JH01048 MCU
- Arm® Cortex®-M0+ based MCU
- One yellow user LED
- One mechanical user switch
- One user touch button
- CAN interface
- LIN interface
- USB for debugger
- Can be used for powering the board
- Must be used to program, or debug, the board
- On-board nano debugger (nEDBG)
- Board identification in MPLAB® X IDE
- One green power/status LED
- Programming and debugging
- Communications Device Class (CDC) virtual COM port
- One logic analyzer DGI GPIO
- The target device is programmed and debugged by the on-board Nano debugger; no external programmer, or debugging tool, is required
- Adjustable target voltage
- MIC5353 LDO regulator controlled by the on-board debugger
- 1.7V to 3.6V output voltage
- 500-mA maximum output current (limited by ambient temperature and output voltage)
Overview
The PIC32CM JH01 Curiosity Nano+ Touch Evaluation Kit (EV29G58A) is a hardware platform that contains a PIC32CM5164JH01048 microcontroller (MCU). The Curiosity Nano+ Touch Evaluation Kit provides easy access to the MCU features and can develop custom applications.
The PIC32CM JH01 Curiosity Nano+ Touch Evaluation Kit is compatible with the AC164162 Curiosity Nano Base for Click boards™. The base includes a Curiosity Nano socket, three mikroBUS™ sockets and an Xplained Pro socket.
This board is supported by MPLAB Integrated tools development environment and MPLAB Harmony.
Related Boards
Development boards with expanded options or features and that support the same set of 5V applications as PIC32C and SAMC MCUs include:
Documentation
|
Title
|
|||
|---|---|---|---|
| Creating the First Application on PIC32CM JH01 Microcontrollers Using MPLAB Harmony v3 with MPLAB Code Configurator (MCC) | PDF | HTML | ||
| PIC32CM JH01 Curiosity Nano+ Touch Evaluation Kit User's Guide | PDF | HTML | ||
| PIC32CM JH01 Curiosity Nano+ Touch Board Design Files | Download | ||
| China RoHS Certificate_EV29G58A | Download | ||
| EU Declaration of Conformity_EV29G58A | Download | ||
| UK Declaration of Conformity_EV29G58A | Download | ||
| EU REACH Statement_EV29G58A | Download | ||
| How to Setup MPLAB Harmony v3 Software Development Framework | PDF | HTML | ||
| ADC Sequencing Using DMA and EVENT System on PIC32C and SAM MCUs Using MPLAB Harmony v3 and MCC | PDF | HTML |
