Part Number: EV07U08A

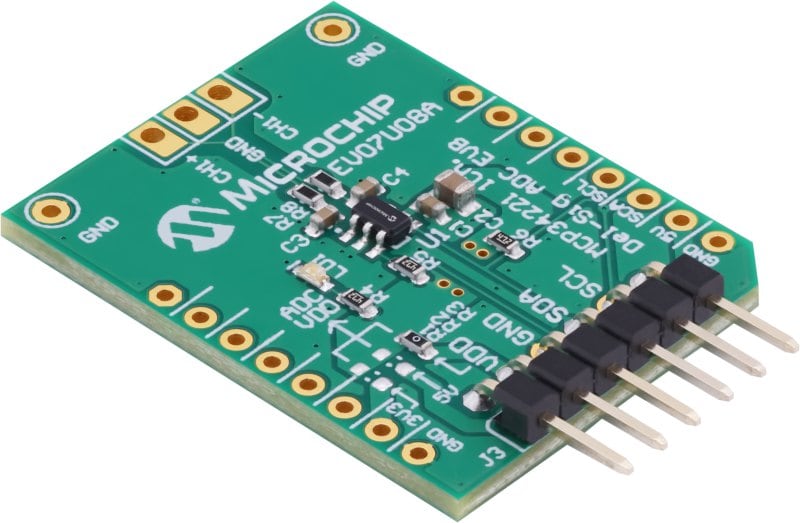

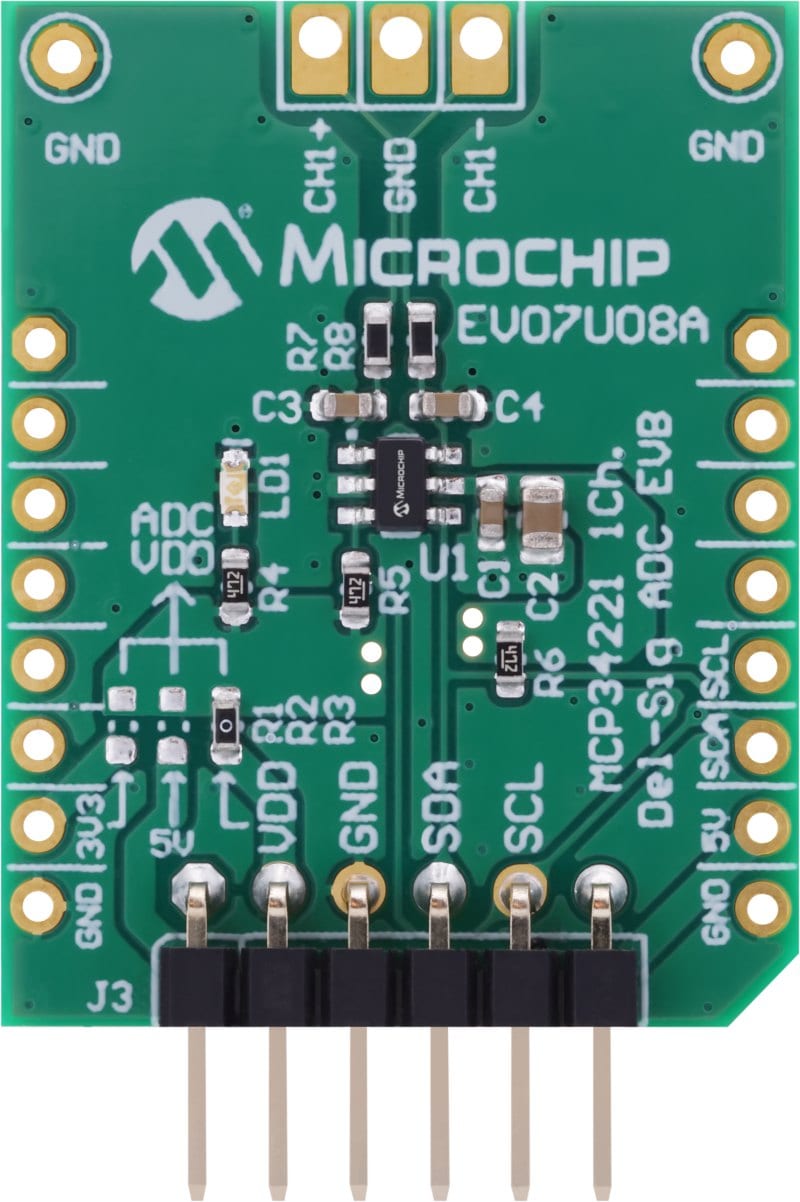

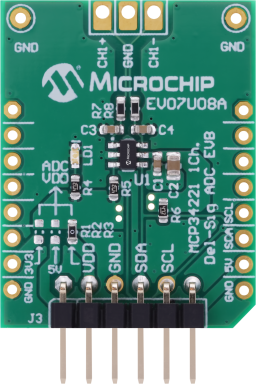

MCP3421 1-Ch Del-Sig ADC EVB (EV07U08A)

Download Primary User Guide

Click-Board format compatible with Curiosity platforms

PICKit Serial/MCP2221A Breakout Module communication header available

Selectable power supply level

View Purchasing Options
Contact Us

Overview

This board features the MCP3421 1Ch 18 bit ΔΣ ADC at 240SPS. Communication is done by the PICKit Serial, MCP2221A Breakout Module, or by Click-Board format for easy connectivity to a PC or Microcontroller platform. Test points are provided to connect an analogue signal towards the ADC.

Package Contents
  • MCP3421 1-Ch Del-Sig ADC EVB (EV07U08A)
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
EV07U08A BOM Download 9794e9ea-93e7-4163-b97b-42cad11857ef
EV07U08A Schematics Download 5b83fa45-797b-4a99-878a-dd681ba1eacd
EV07U08A Gerbers Download a80fd216-e51e-49d1-be47-fb5eda068dac
EV07U08A Design Files Download 0897fe74-8f07-4311-8538-0c0c54bbbc45
EV07U08A 3D PDF Download f580c675-0bb5-4769-98a3-bb2a1f515996
MCP3421-and-MCP3422-SOT-23-6-User-Guide-DS50003483.pdf Download a4995c1b-b53f-4c7e-ab33-a9c2f54d98f5

Software

Title
Date
PICkit Serial Analyzer Scripts for MCP342x Download 12 Sep 2022
MCP2221A Breakout Module Scripts for MCP342x Download 12 Sep 2022

Silicon Products

Product
Title
Product
Title
MCP3421 18-Bit, 240SPS, Single Channel ADC MCP3421 18-Bit, 240SPS, Single Channel ADC
