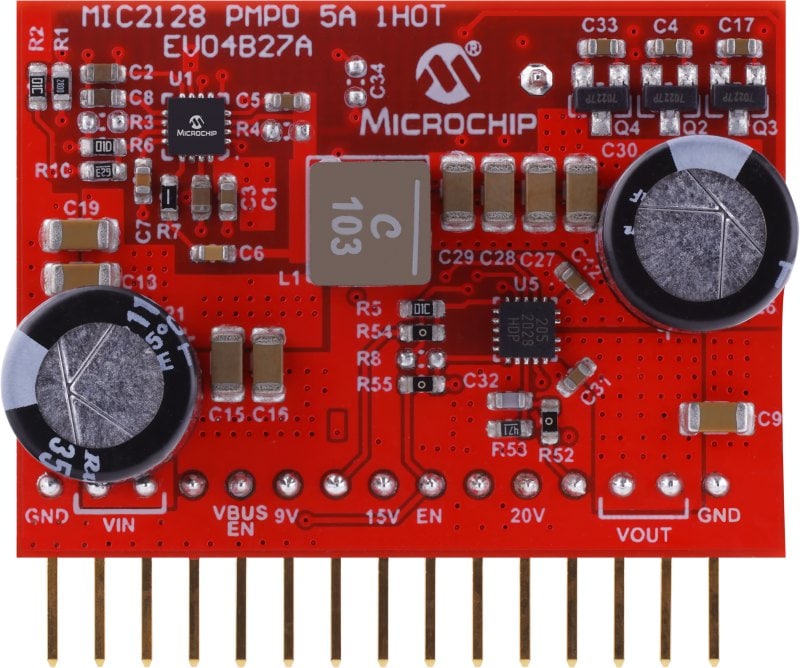

220125-apid-photo-ev04b27a-front-transparent

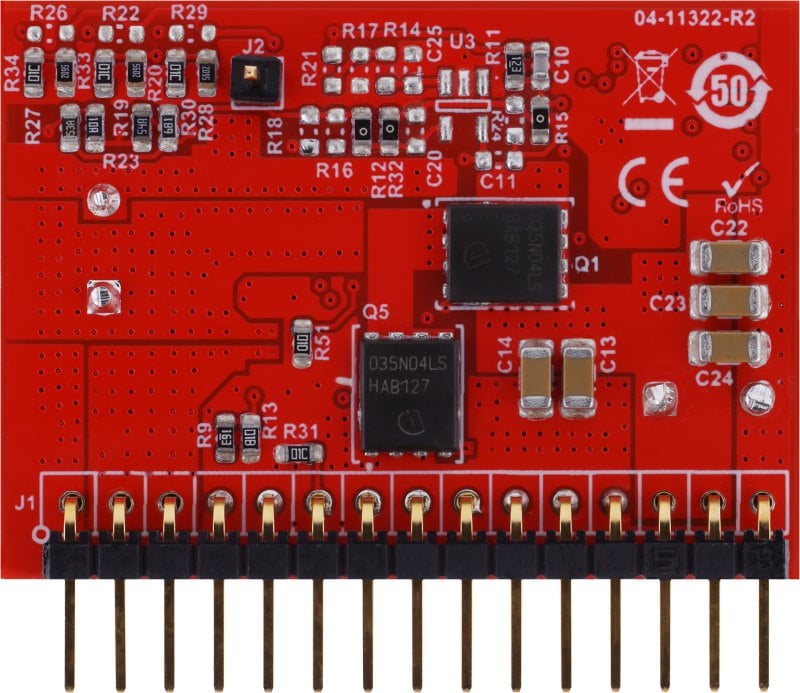

220125-apid-photo-ev04b27a-back-transparent
220125-apid-photo-ev04b27a-145x145-md
220125-apid-photo-ev04b27a-front-transparent
220125-apid-photo-ev04b27a-back-transparent
220125-apid-photo-ev04b27a-145x145-md

Part Number: EV04B27A

MIC2128 + UCS3205 PD 1 HOT

  •   24V input voltage buck PMPD
  •   Output voltage ranges from 5V, 9V, 15V, and 20V
  •    5A output current
  •    Programmable output voltage using analog or digital board input
  •    Over current protection
View Purchasing Options
Contact Us

Overview

UCS3205-PMPD board is the low cost PMPD daughter card (GPIO version) consists of MIC2128 75V Synchronous Buck Controllers and UCS3205 High Voltage, High Current USB PD Protection Load Switch to enable up to 100W of power delivery to plug into UNG main board.

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
EV04B27A Evaluation Board - Schematic Download dc70cf92-918a-490f-a500-2a8a1ab2df95
EV04B27A - BOM Download 9450370b-d08d-4590-b1a7-9f8b53b8f877
China Rohs Declaration - EV04B27A Download 43d84937-db28-4f2f-9b52-38de055718c9
EU Declaration of Conformity - EV04B27A Download 8812daa0-33cc-4fe9-8865-0c813f98f9ac
EU REACH Statement - EV04B27A Download 8e1384d3-5a0c-4bea-8e47-c7889ee31364
EV04B27A Evaluation Board - Gerbers Download 3e086011-7b6d-4cb1-b2c6-34005d1ac0c6

Silicon Products

Product
Title
Product
Title
MIC2128 75V Synchronous Buck Controllers Featuring Adaptive ON-Time Control and External Soft start MIC2128 75V Synchronous Buck Controllers Featuring Adaptive ON-Time Control and External Soft start
UCS3205 22V Load Switch for USB PD Protection UCS3205 22V Load Switch for USB PD Protection
