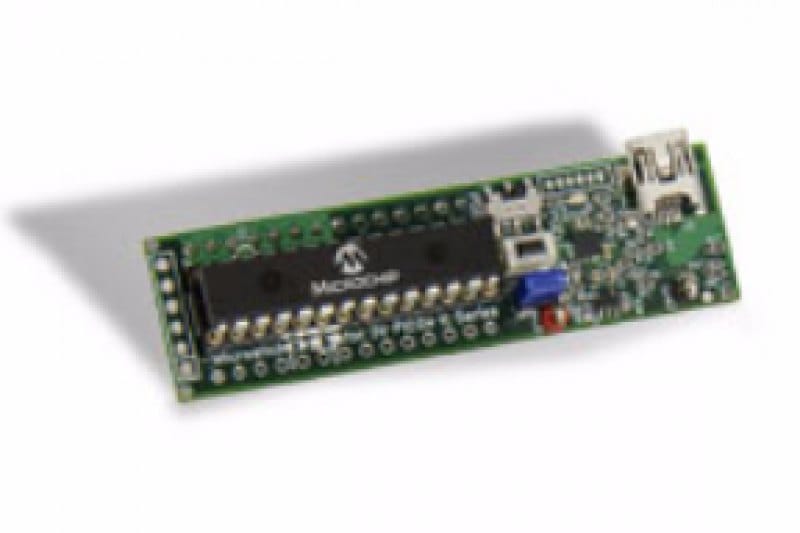

Part Number: DM240013-1
MICROSTICK FOR 3V PIC24F K-SERIES
- Low Cost
- Compatible with Microchip’s popular 16-bit XLP Development Board (Part #: DM240311)
- Integrated Programmer / Debugger – No External Debugger Required
- USB Powered – Ease of Use, No External Power Supply Required
- MPLAB IDE Support
- DUT Socket – Flexible, Easy Device Swapping
- Works Stand-alone or Plugged into a Prototyping Board
- Easy Access to all Device Signals for Probing
- Smaller than a Stick of Gum at 20mm x 69mm – Easily Portable
- On Board User and Power LEDs
- Reset Button
- Demo Code
Overview
Microstick for 3V PIC24F K-series (Part #: DM240013-1) is a flexible USB powered development platform. It’s the perfect solution for those looking to get started with Microchip’s lowest cost 16-bit microcontroller families – PIC24F “KL” and “KA” – for extremely cost sensitive consumer, medical and industrial applications.
SUPPORTED PARTS:
Microstick for 3V PIC24F K-series supports the following 3V PIC24F “KL” and “KA” devices (28-pin SPDIP package only)
- PIC24F16KL402 (included in package)
- PIC24F16KA102 (included in package)
- PIC24F08KL302
- PIC24F08KL402
- PIC24F08KA102
- PIC24F16KA302
- PIC24F32KA302
