Part Number: DM164146

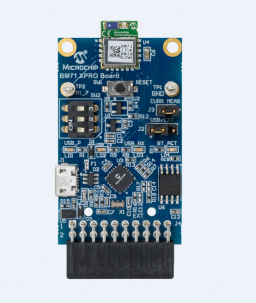

BM71-XPRO
- BM71 Bluetooth Low Energy Module
- USB-UART Bridge (MCP2200) for Host PC Operation
- 3.3V LDO for Power Regulation
- SPI Flash for Storing Firmware Images (DFU OTA)
- Reset Push Button
- Switch for BM71 Operation Mode
- Switch to turn all LEDs off for Current Measurement
- Switch for GPIO control
- Passive RC Filters for PWM and ADC Inputs
- XPRO Extension Header
- Header Pins for Current Measurement
- Two Power Sources:
- Micro USB
- XPRO Connector
Overview
The BM71-XPRO board is designed to be able to easily add Bluetooth Low Energy (BLE) functionality to your XPRO development tools. It can be used as an extension to your favorite SAMx or AVRx XPRO boards or can be used standalone. The BM71 XPRO is fully supported within Atmel Studio with example code in ASF3.
The Microchip Bluetooth Data (MBD) mobile app is available to speed up development for both Android and iOS.
