Part Number: DM164130-1

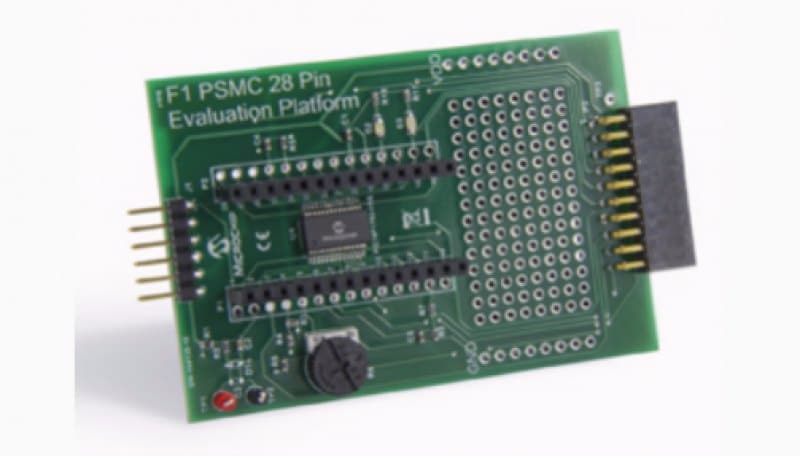

F1 EVALUATION PLATFORM
- 44-pin development board with prototyping area
- Populated with a PIC16LF1937 featuring nanoWatt XLP technology
- 3 Volt, 40 segment multimeter LCD glass
- Potentiometer
- Mechanical button
- MCP9800 temperature sensor
- 32kHz low power crystal
- LEDs
- Current monitoring connector to measure low power XLP capabilities
- In Circuit Serial Programming Interface for PICkit3
- PICkit serial interface
- Expansion header for the F1 BLDC motor add-on
- Included Demos:
- Low Power Demonstration
- LCD Demonstration
- Brushless DC (BLDC) motor control (requires F1 BLDC motor add-on)
Overview
The F1 Evaluation Platform is a simple development tool for Enhanced Mid-range PIC microcontrollers (PIC12F1xxx/PIC16F1xxx) and demonstrates the capabilities & low power enhancements of these new PIC microcontrollers. This provides a platform for general purpose development and gives you the ability to develop code for any PIC12F1xxx/PIC16F1xxx microcontroller. Quick & easy development is ensured with the integrated functionality including: prototyping area, LCD control, system current monitoring, temperature sensing, Real-Time-Clock, LED drive, button control, and BLDC motor control.
Newer version development tools are available now. Please consider Curiosity Development Board (DM164137) or Explorer 8 Development Board (DM160228) for new designs
The F1 Evaluation Platform is a simple development tool for Enhanced Mid-range PIC microcontrollers (PIC12F1xxx/PIC16F1xxx) and demonstrates the capabilities & low power enhancements of these new PIC microcontrollers. This provides a platform for general purpose development and gives you the ability to develop code for any PIC12F1xxx/PIC16F1xxx microcontroller. Quick & easy development is ensured with the integrated functionality including: prototyping area, LCD control, system current monitoring, temperature sensing, Real-Time-Clock, LED drive, button control, and BLDC motor control.
