Part Number: ATSAM4S-XPLD

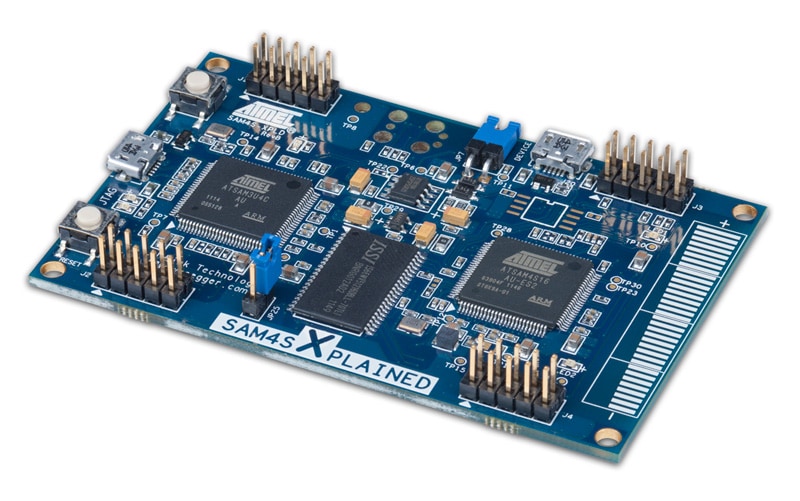

SAM4S XPLAINED KIT

  • JTAG emulator for program and debug
  • USB connectivity
  • Four Atmel QTouch buttons
  • External voltage input
  • Four LEDs
  • Xplained expansion headers
  • Footprint for external serial Flash
  • SAM4S16C microcontroller
Part Number: Quantity: Price per Unit (in USD): Total Amt:
Continue Shopping Go to Cart

Overview

The SAM4S Xplained kit is the ideal platform for early evaluation of the capabilities offered by the SAM4S Cortex™-M4 processor-based microcontroller. The SAM4S Xplained contains four QTouch® button sensors, LEDs and a USB port. The Xplained expansion headers provide easy access to analog and digital I/O pins. The board is powered by the USB cable and integrates a JTAG emulator with USB interface for programming and debugging.

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
SAM4S Xplained Design and Manufacturing Files Download 851b3a0e-3d34-487c-a0d4-1e44dbb0d0f0
SAM4S Xplained Design and Manufacturing Files Download 852e1b21-85f7-47e5-a2f9-86c88c42da93
