Part Number: ATRF4CE-EK
RF4CE-EK
- Evaluate the outstanding performance of the ultra-low power ATmega128RFA1 single-chip transceiver
Overview
This product is no longer available for sale.

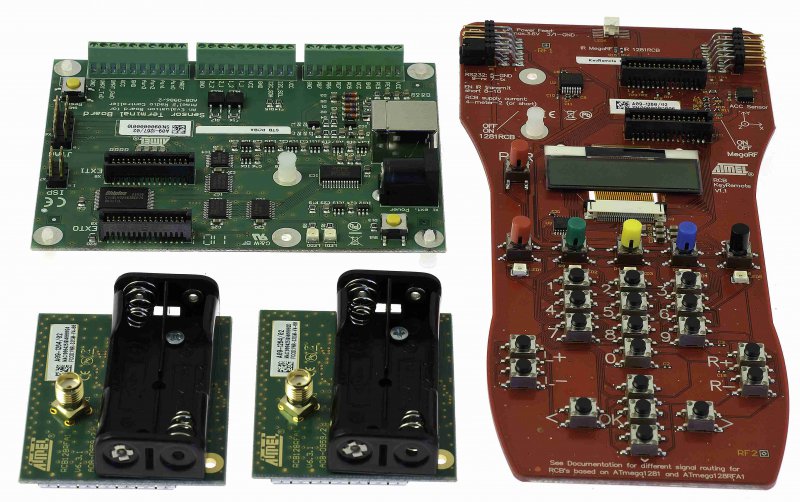

The RF4CE-EK Evaluation Kit demonstrates the unique performance of the 2.4GHz System-on-Chip solution ATmega128RFA1.The RF4CE-EK contains two Radio Controller Boards (RCB) assembled with the ATmega128RFA1 and a SMA connector at the RF port. The RCB is powered by two AAA batteries and forms a full functional and portable wireless node.
Application Notes
|
Title
|
Date
|
Document Category
|
|
|---|---|---|---|
| AVR2063: Sensor Terminal Board - Hardware User Manual | 10 Dec 2016 | Link | Application Notes |
| AVR2103: RF4CE Remote Control Evaluation Kit - Quick Start Guide | 10 Dec 2016 | Link | Application Notes |
| AVR2037: RCB Key Remote Control - Hardware User Manual | 10 Dec 2016 | Link | Application Notes |
| AVR2104: RF4CE-EK Remote Control Evaluation Kit - User Guide | 10 Dec 2016 | Link | Application Notes |
| AVR477: RF4Control - Touch Remote Control | 10 Dec 2016 | Link | Application Notes |
| AVR2044: RCB128RFA1 - Hardware User Manual | 10 Dec 2016 | Link | Application Notes |
