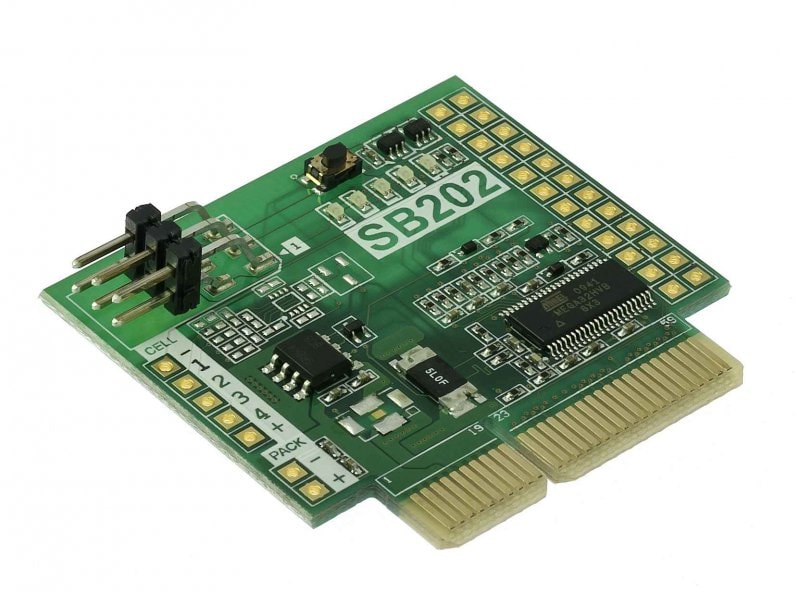

Part Number: ATAVRSB202

ATAVRSB202

This device is made for battery packs with either one or two cells in series, and features autonomous battery protection as well as very accurate voltage, current and temperature monitoring capabilities
View Purchasing Options
Contact Us

Overview

The SB202 is an evaluation and development kit for the ATmega32HVB. This device is made for battery packs with either one or two cells in series, and features autonomous battery protection as well as very accurate voltage, current and temperature monitoring capabilities. The device provides the means to protect the battery pack and surroundings from hazardous conditions and gain most energy from the Battery cells.
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies
Add to Cart

Related Tools

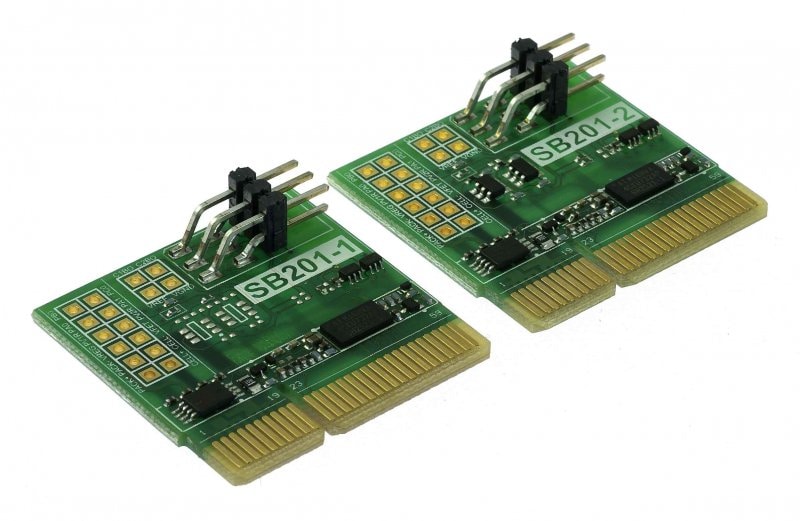

ATAVRSB201

ATAVRSB201

The development kit for the ATmega16HVA for battery packs with either one or two cells in series.

All Application Notes

Application Notes

Title
Date
Document Category
AVR459: SB200 Hardware User Guide 10 Dec 2016 Link Application Notes
AVR473: ATAVRSB202 Hardware User Guide 10 Dec 2016 Link Application Notes
AVR474: ATAVRSB202 Firmware User Guide 10 Dec 2016 Link Application Notes
AVR491: Quick start guide for SB200 10 Dec 2016 Link Application Notes

Software

Title
Date
Atmel AVR Battery Studio Download 02 Jan 2017
