Part Number: ATA6844-DK
ATA6844-DK
Overview

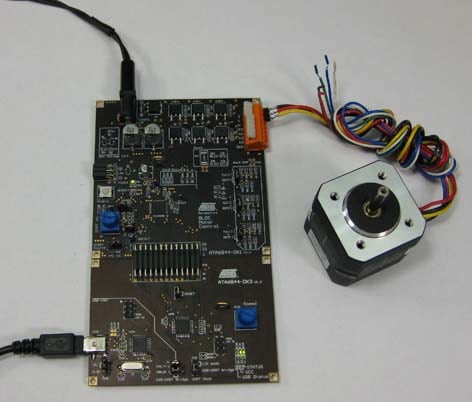

Intention of the kit is demonstrating the features of the ATA6843/44 System Basis Chip BLDC Gate Driver. Motor position feedback operates with Back-Electromotive-Force (Back-EMF). Motor control microcontroller is ATmega32M1. For monitoring and evaluating purposes is an USB interface on board.
Documentation
|
Title
|
|||
|---|---|---|---|
| ATA6843/ATA6844 - Complete Datasheet | Download |
Application Notes
|
Title
|
Date
|
Document Category
|
|
|---|---|---|---|
| ATA6844-DK BLDC Motor Control Kit | 10 Dec 2016 | Link | Application Notes |
| Getting Started with the ATA6844-DK BLDC Motor Control Kit | 10 Dec 2016 | Link | Application Notes |
