Part Number: ADM01014

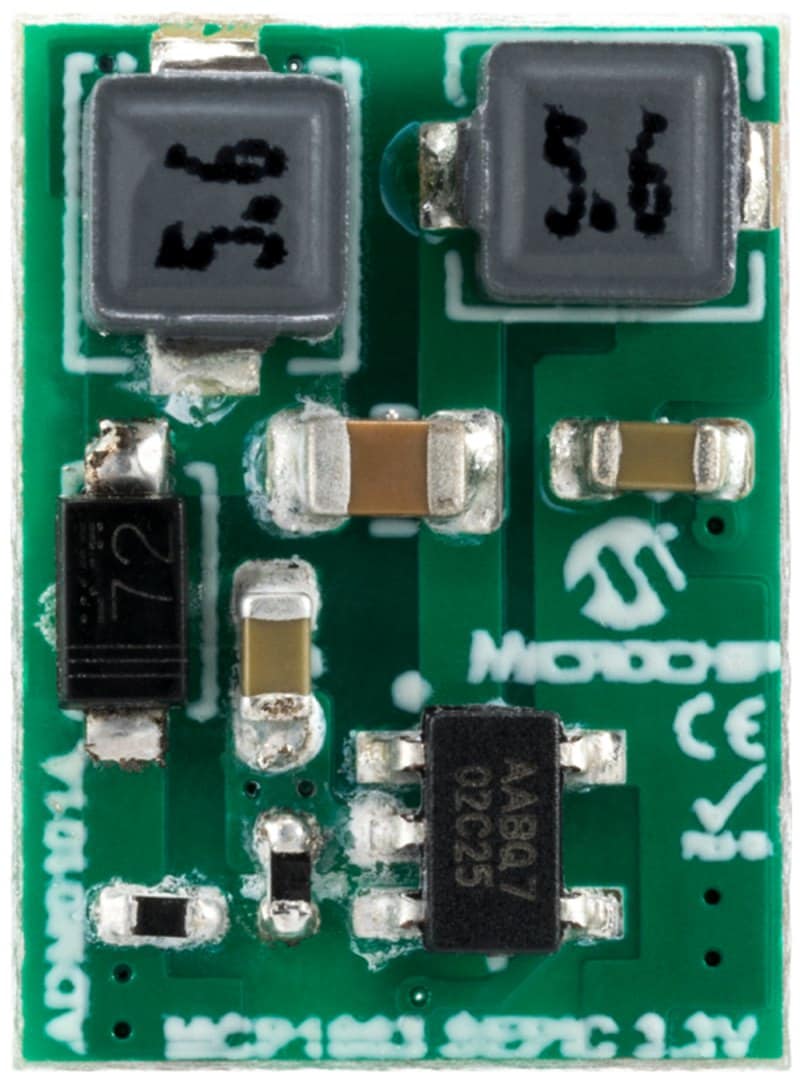

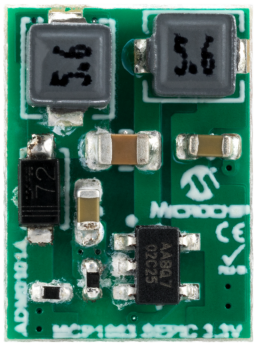

ADM01014 - MCP1663 3.3V 300MA SEPIC DDPAK MINI-MODULE
The MCP1663 Mini-Module SEPIC Converter Evaluation Board has the following features:
• Undervoltage Lockout (UVLO): 1.85V (typical)
• Start-up Voltage: 2.3V (UVLO Start)
• Input Voltage Range (VIN) after start-up: 1.85V to 5.5V
• Output Voltage: 3.3V
• Output Current: 300 mA @ 3.3V Output, 2.8V Input; refer to Figure 2-1
• PWM Operation
• Switching Frequency: 500 kHz
• Peak Input Current Limit: 1.8A
• Internal Compensation
• Soft Start
• Overtemperature Protection (if the die temperature exceeds +150°C, with 15°C hysteresis)
• Small Size Package: 13 mm x 9.5 mm (DDPAK)
• Undervoltage Lockout (UVLO): 1.85V (typical)
• Start-up Voltage: 2.3V (UVLO Start)
• Input Voltage Range (VIN) after start-up: 1.85V to 5.5V
• Output Voltage: 3.3V
• Output Current: 300 mA @ 3.3V Output, 2.8V Input; refer to Figure 2-1
• PWM Operation
• Switching Frequency: 500 kHz
• Peak Input Current Limit: 1.8A
• Internal Compensation
• Soft Start
• Overtemperature Protection (if the die temperature exceeds +150°C, with 15°C hysteresis)
• Small Size Package: 13 mm x 9.5 mm (DDPAK)
Overview
Another important feature of this evaluation board is that it has the EN pin accessible and can be controlled from an MCU or another device.
Package Contents
1 x MCP1663 Mini-Module SEPIC Converter Evaluation Board (ADM01014)
Documentation
|
Title
|
|||
|---|---|---|---|
| MCP1663 3.3V 300mA SEPIC DDPAK Mini-Module (ADM01014) User Guide | Download | ||
| MCP1663 3.3V 300mA SEPIC DDPAK Mini-Module (ADM01014) Gerbers | Download | ||
| MCP1663 3.3V 300mA SEPIC DDPAK Mini-Module (ADM01014) Schematic | Download | ||
| MCP1663 3.3V 300mA SEPIC DDPAK Mini-Module (ADM01014) BOM | Download |
