Part Number: ADM00880

MIC23350 3A SYNCH BUCK REGULATOR EVAL BD

Features:
• Input Voltage range 2.4V to 5.5V
• Output Voltage selectable by two Voltage Select pins: 0.6V, 0.8V, 0.9V, 1.0V, 1.2V, 1.5V, 1.8V, 2.5V or 3.3V
• 3A continuous output current
• High Efficiency (up to 95%)
• PG, EN, SW and loop gain measurement test points
• 6A High Side current limit
View Purchasing Options
Contact Us

Overview

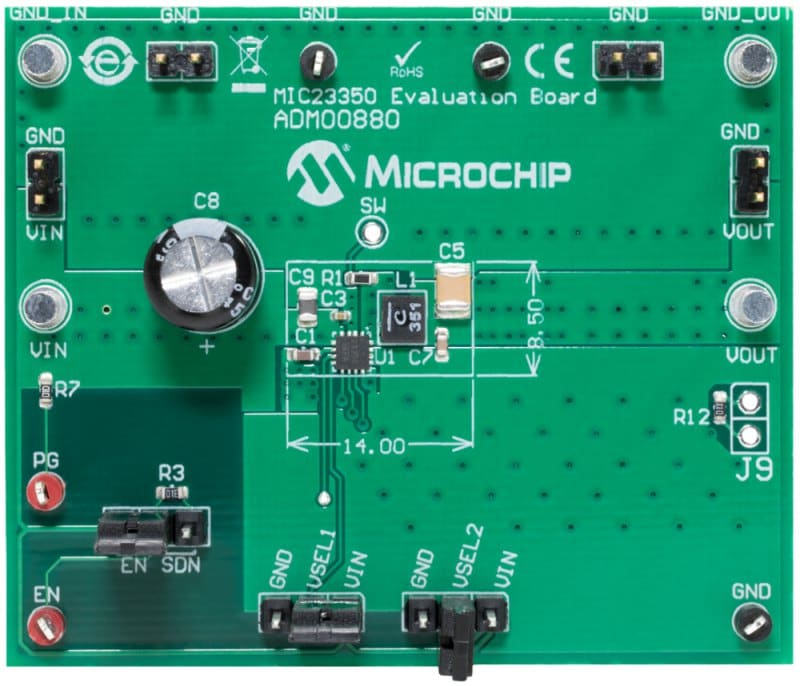

The MIC23350 Evaluation Board is developed to evaluate and demonstrate Microchip Technology’s MIC23350 product. The board features the MIC23350 in a typical Buck application supplied from an external source, between 2.4V – 5.5V. Nine output voltage levels can be set via two Voltage Select pins. Test connectors allow probing, while the board can be loaded up to 3A.
Package Contents
1 x MIC23350 3A Synch Buck Regulator Eval Bd
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
MIC23350 Evaluation Board User's Guide Download 70e4b602-ecb0-4b57-b1b2-f1ae39128e68
MIC23350 3A Synch Buck Regulator Eval Bd (ADM00880) Schematic Download 1e6e4c2f-8a4e-4e25-878c-f026a7f773b2
MIC23350 3A Synch Buck Regulator Eval Bd (ADM00880) Gerbers Download 02af4c4d-0a87-4c22-8f34-1dd331954df5
MIC23350 3A Synch Buck Regulator Eval Bd (ADM00880) BOM Download 5cefe7ec-cf4e-464d-b403-8021eb28fe92
