2466-adm00821
2466-adm00821

Part Number: ADM00821

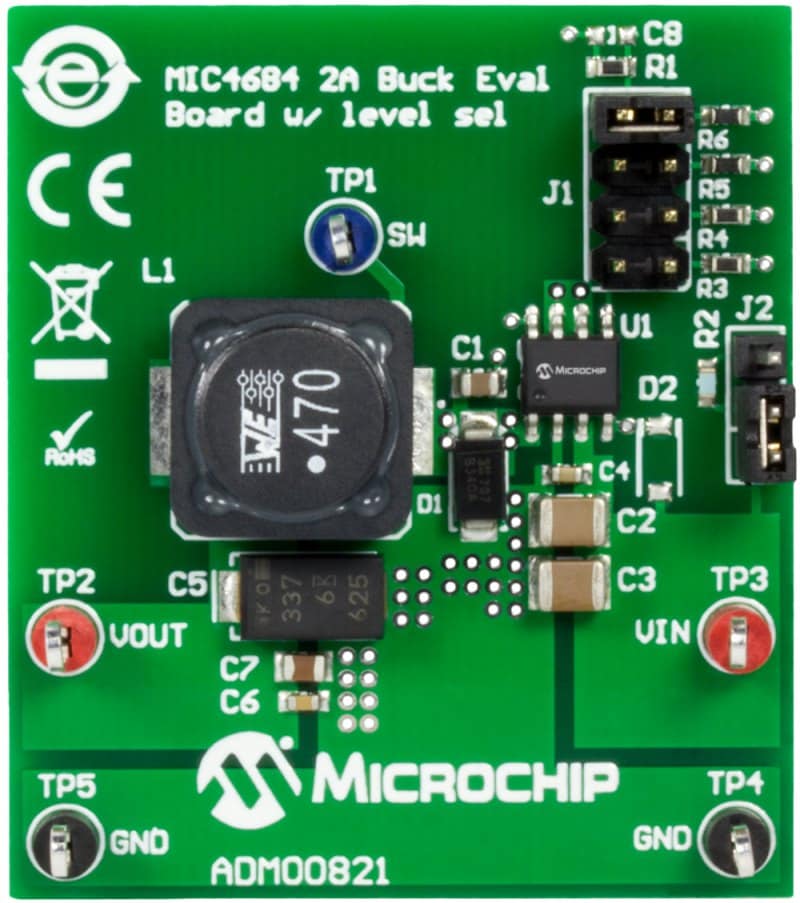

MIC4684 2A BUCK EVAL BOARD W/ LEVEL SEL

-Wide input voltage range: 4V to 30V
-Selectable Output Voltage:1.8V, 2.5V, 3.3V, 5V
-Thermal Shutdown
-Overcurrent Protection
-Fixed 200kHz Switching Frequency operation
-SO-8 package

View Purchasing Options
Contact Us

Overview

The MIC4684 2A Buck Eval Board w/ level sel allows the evaluation of the MIC4684 which is a step down converter with a maximum input voltage of 30V and a maximum output current of 2A.

Package Contents

1x MIC4684 2A Buck w/ level select Eval Bd​ (ADM00821)

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
MIC4684 2A Buck Eval Board w/ level sel (ADM00821) Gerber Files Download bf5d26bf-7dd9-48e0-86a7-deeef4738959
MIC4684 2A Buck Eval Board w/ level sel (ADM00821) BOM Download 7eeb9d5e-64d3-4739-8fc6-c26bd4006d0f
MIC4684 2A Buck Eval Board w/ level sel (ADM00821) Schematic Download 295771a8-b27f-4e12-b509-c594bfd6b960
MIC4684 Data Sheet Download 6fd3360c-b3b8-47fb-abce-adb016a5197c
