Part Number: ADM00799

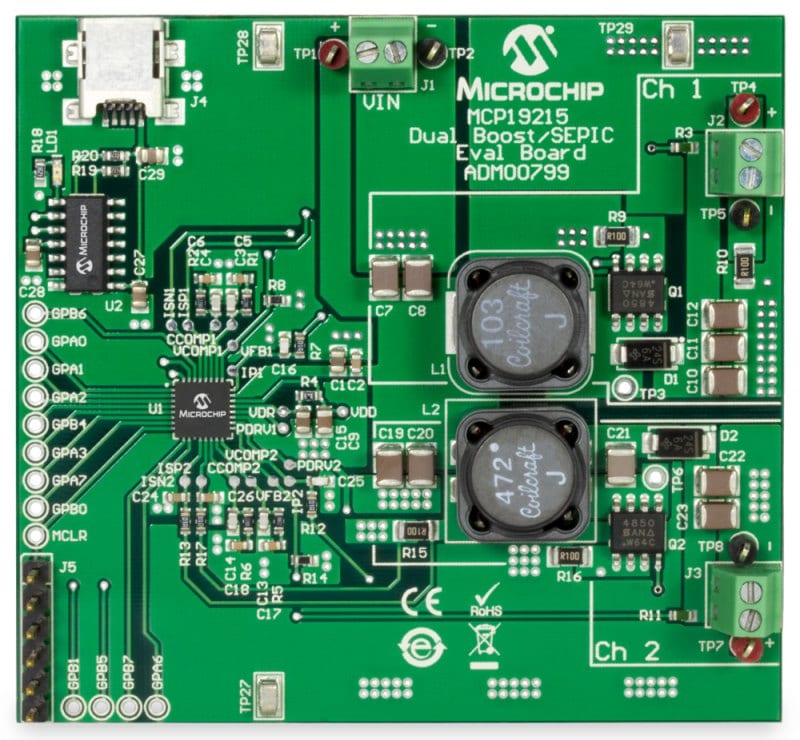

MCP19215 DUAL BOOST/SEPIC EVALUATION BOARD
The key features of the MCP19215 Dual Channel Controller Evaluation Board include:
• input voltage range: 8V to 15V
• output voltage: default 20V for both channels (can be software adjusted from input voltage + 1V to 24V for channel 1 and 9V to 24V for channel 2)
• default output current: 0.2A (can be software adjusted from 0A to 1A)
• 300 kHz switching frequency
• status report (including errors, input voltage, output voltage and current) via I2C communication
• under voltage lockout (UVLO) and overvoltage lockout (OVLO) with programmable thresholds (via software)
• input voltage range: 8V to 15V
• output voltage: default 20V for both channels (can be software adjusted from input voltage + 1V to 24V for channel 1 and 9V to 24V for channel 2)
• default output current: 0.2A (can be software adjusted from 0A to 1A)
• 300 kHz switching frequency
• status report (including errors, input voltage, output voltage and current) via I2C communication
• under voltage lockout (UVLO) and overvoltage lockout (OVLO) with programmable thresholds (via software)
Package Contents
This MCP19215 Dual Channel Controller Evaluation Board kit includes:• The MCP19215 Dual Boost/SEPIC Eval Board (ADM00799)
• USB A to Mini-USB Type B Cable
• Important Information Sheet
Documentation
|
Title
|
|||
|---|---|---|---|
| MCP19214/MCP19215 Data Sheet | Download | ||
| MCP19215 Dual Boost/SEPIC User's Guide | Download | ||
| MCP19214/MCP19215 Monitoring GUI User's Guide | Download | ||
| MCP19215 Dual Boost/SEPIC Evaluation Board (ADM00799) Gerbers | Download | ||
| MCP19215 Dual Boost/SEPIC Evaluation Board (ADM00799) BOM | Download | ||
| MCP19215 Dual Boost/SEPIC Evaluation Board (ADM00799) Schematics | Download |
