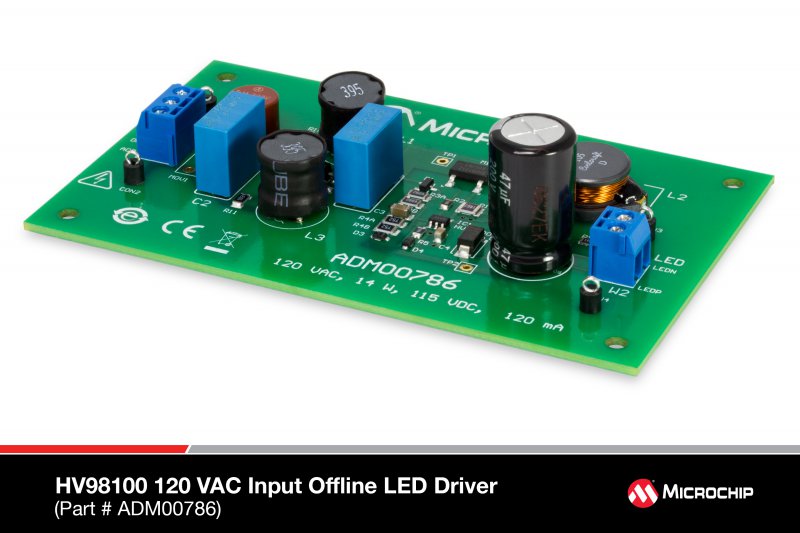

1612-161102-apid-adm00786
1612-161102-apid-adm00786

Part Number: ADM00785

HV98101 230VAC OFF-LINE LED DRIVER EVALUATION BOARD

  • Input Voltage = 195V to 264VAC, 50 Hz
  • LED String Voltage = 88V - 122V
  • LED Current = 100 mA ± 5%
  • Input Power Factor: >0.97
  • Input Total Harmonic Distortion: <4%
  • Output Short-circuit protection with auto-restart
  • Output Open-circuit protection with auto-restart
  • Meets CISPR-15 Conducted Emissions standards
View Purchasing Options
Contact Us

Overview

The HV98101 230VAC Off-Line LED Driver Evaluation Board is designed to demonstrate the performance of Microchip Technology Inc's HV98101 LED Driver IC. The evaluation board drives a 100V LED string at 100mA from a 230VAC input voltage with high input Power Factor and low Total Harmonic Distortion.

Package Contents
  • HV98101 230VAC Off-Line LED Driver Evaluation Board (ADM00785)
  • Important Information Sheet
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
ADM00785 BOM Download d1dc4e02-041d-49ff-9c26-d87ffc0c9d19
ADM00785 Schematic Download e1bc518a-2c37-484b-b165-32753675d29d
ADM00785 Gerbers Download ab5dd17c-0610-42a7-93e3-6fad75e3ead8
HV98101 230VAC Off-Line LED Driver Evaluation Board User's Guide Download f4a4af6e-aa18-4733-8ed0-f992dda060f2
HV98100/HV98101 Non-Dimmable, Off-Line, LED Driver with Low Total Harmonic Dis Download b39c6502-d7a8-4c5f-a680-307fb3b44719
