Part Number: ADM00519

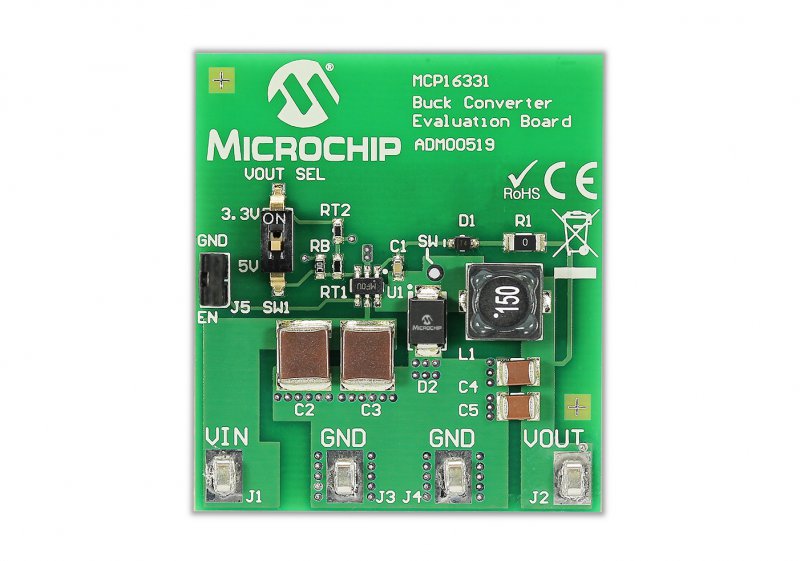

MCP16331 BUCK CONVERTER EVALUATION BOARD

• Input voltage range, VIN: 6V to 50V
• Converter can be turned on/off by using a jumper on the EN/GND connector
• Fixed output voltage: 3.3V or 5.0V (selectable through the use of a switch)
• Typical output current: 500 mA
• PWM Switching Frequency = 500 kHz
• Internal compensation
• Internal soft-start
• Over-temperature protection (if the die temperature exceeds 150°C, 25°C hysteresis)
View Purchasing Options
Contact Us

Overview

The MCP16331 Buck Converter Evaluation Board is used to evaluate and demonstrate Microchip Technology’s MCP16331 product in the SOT-23 package. This board demonstrates the MCP16331 in a buck-converter application with two selectable output voltages. Test points are provided for the input and output, allowing the board to be connected directly to a system. Additional test points are provided to access the EN pin, in order to modify the state of the converter and also access the SW pin, in order to see the switching waveform. The MCP16331 High-Voltage Buck Converter Evaluation Board was developed to help engineers reduce product design cycle time.
Package Contents
• 1x MCP16331 Buck Converter Evaluation Board (ADM00519)
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
MCP16331 Data Sheet Download f5ea6a4d-af85-472b-b0ad-dd2b585043e8
Analog and Interface Product Selector Guide Download 26099990-31de-47b8-a14c-d19687a4db0e
MCP16331 Buck Converter Evaluation Board (ADM00519) BOM Download 9bfafdad-ec15-4dde-94c5-089f02fe32b5
MCP16331 Buck Converter Evaluation Board (ADM00519) Schematics Download e39eee70-9175-4d1d-81a6-655b76a3a13b
MCP16331 Buck Converter Evaluation Board (ADM00519) Gerbers Download 466ddd6a-4cf2-4eea-84cb-8d4e9bc29d38
